2A3/4
3-3-89
3-3-11 SRDF section
( 1 ) Detaching and refitting the DF original feed pulley and the DF forwarding pulleys
Clean or replace the DF original feed pulley and DF forwarding pulleys as follows.
<Procedure>
1. Open the DF original reversing cover.
2. Remove the two screws holding the upper original feed section cover and then the
cover.
3. Remove the two stop rings and then the original feed pulley assembly by sliding out
the bushings.
Stop ring
Stop ring
Bushing
Bushing
Original feed
pulley assembly

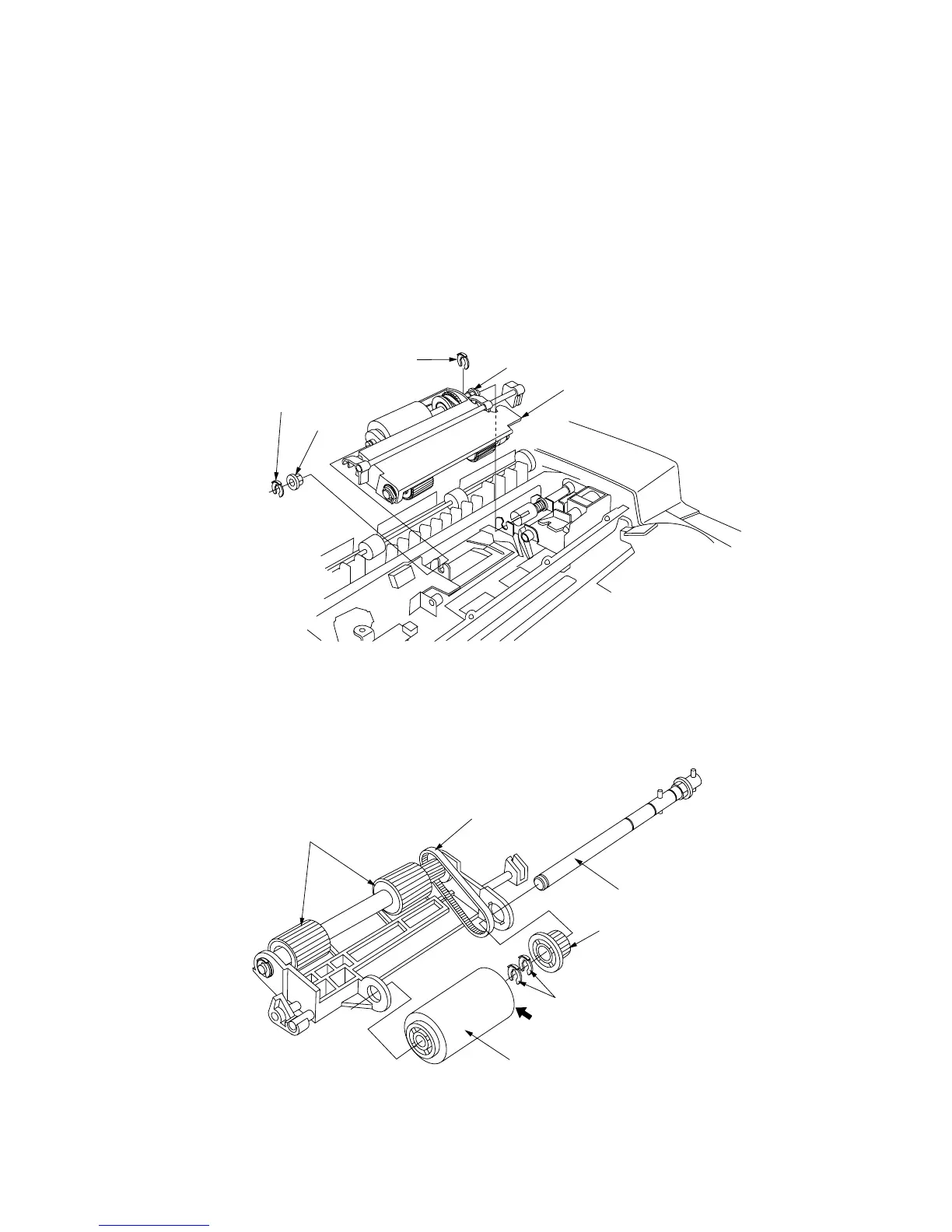

Figure 3-3-105 Detaching the original feed pulley assembly
• Detaching the DF original feed pulley
4. Remove the two stop rings and then the DF original feed pulley from the original
feed front shaft.
DF forwarding pulleys
DF forwarding belt
DF forwarding pulley 20
DF original feed pulley
Original feed front shaft
Stop rings
One-way clutch
Figure 3-3-106 Detaching the DF original feed pulley
