2A3/4
2-2-6

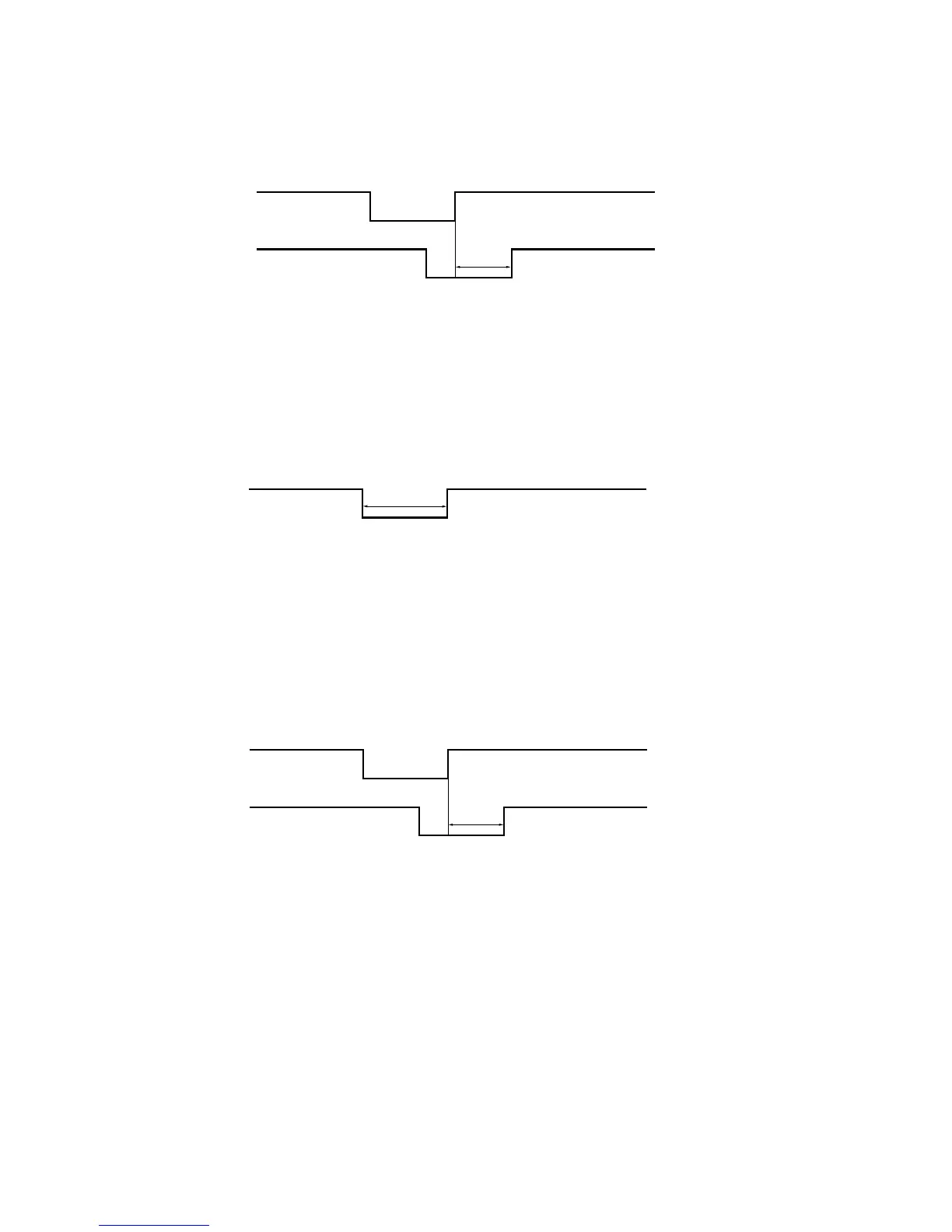

• Multiple sheets before registration section (jam code 23)
The feed switch (FSW) does not turn off within 1340 ms of paper feed switch 1 (PFSW1)
turning off.
PFSW1
1340 ms
On
Off
On
Off
FSW
Timing chart 2-2-12
The feed switch (FSW) does not turn off within 2528 ms of turning on during bypass
paper feed.
2528 ms
On
Off
FSW
Timing chart 2-3-13
3. Paper conveying section
• Jam in registration/transfer section (jam code 30)
The registration switch (RSW) does not turn off within 764 ms of the feed switch (FSW)
turning off.
RSW
764 ms
On
Off
On
Off
FSW
Timing chart 2-2-14
