6. Feedshift section
• Jam in feedshift section (jam code 52)
The feedshift switch (FSSW) does not turn on within 1400 ms of the eject switch (ESW)
turning on.
ESW
1400 ms
On
Off
On
Off
FSSW

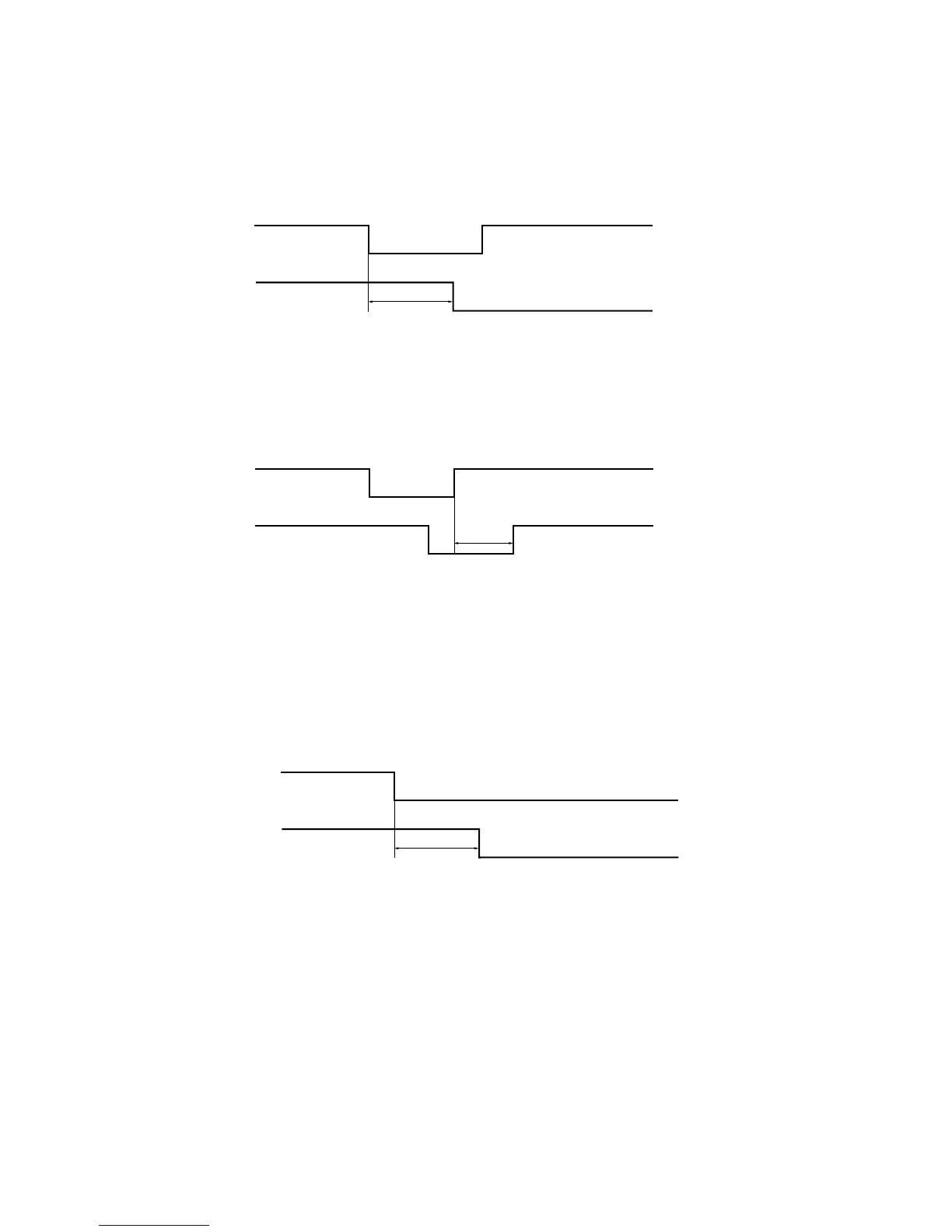

Timing chart 2-2-18
The feedshift switch (FSSW) does not turn off within 1400 ms of the eject switch (ESW)
turning off.
ESW
1400 ms
On
Off
On
Off
FSSW
Timing chart 2-2-19
7. Duplex section
• Jam in duplex stock section (jam code 60)
The switchback eject switch (SBESW) does not turn on within 856 ms of the duplex
forward solenoid (DUPFWDSOL) turning on.
DUPFWDSOL
856 ms
On
Off
On
Off
SBESW
Timing chart 2-2-20
