Kyocera KM-4230 - Page 163

3-1-3
2A3/4
• 42 ppm
Feed bottom protector*
1
Light source
unit 1 pins
Light source unit 2 pin
Copy tray*
2
Paper size label sheet
Cleaning
blade pin
Drum

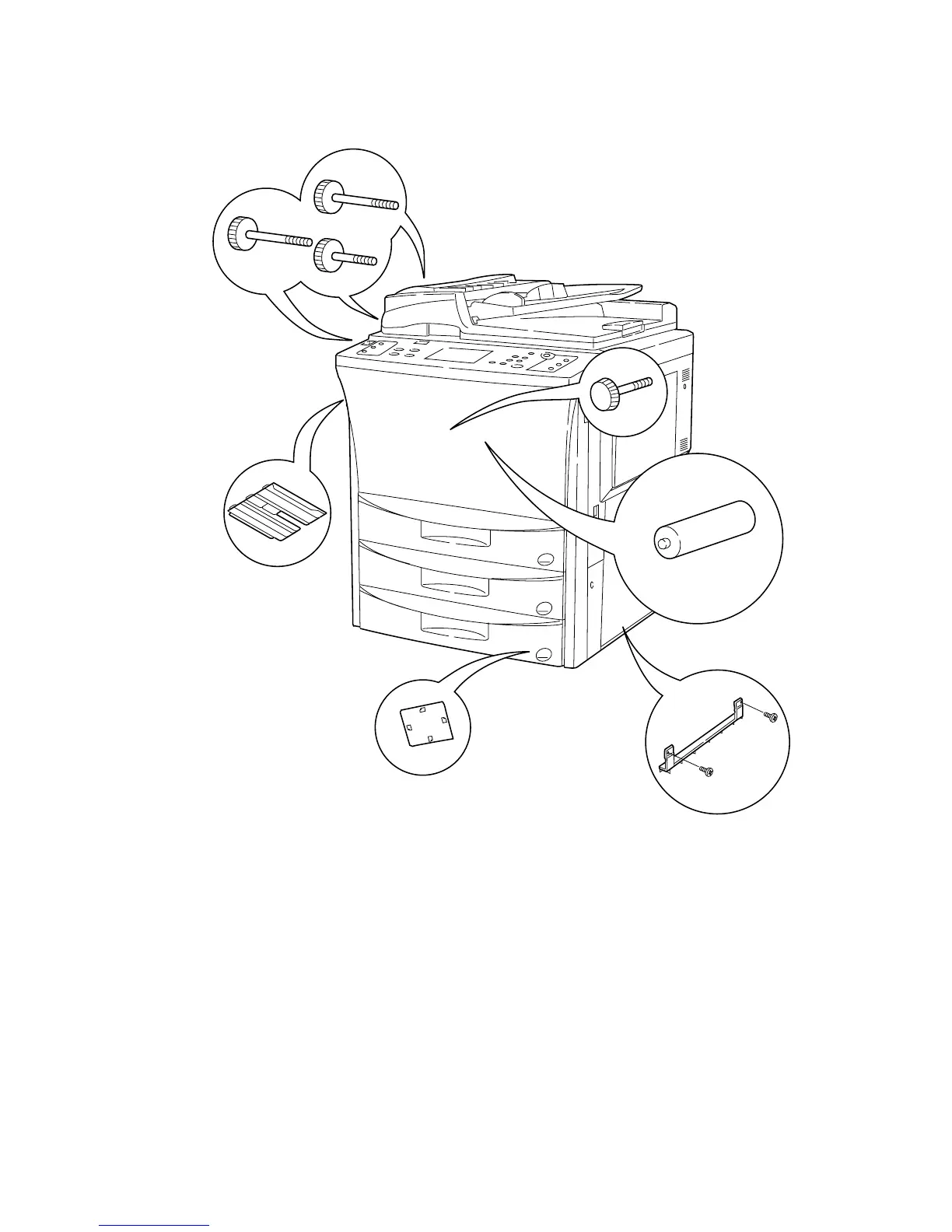

Figure 3-1-2-a
*1: When neither the paper feed desk nor the large paper deck is installed.
*2: For 220-240 V specifications only.
