1. Remove the tape holding the front cover.
2. Remove the two tapes holding the drawers.
3. Remove the tape holding the right cover.
4. Remove the tape holding the deck side cover.
5. Open the front cover and remove the three tapes holding the SRDF.
6. Remove the two tapes holding the power cord.*
7. Remove the tape binding the power cord.
Drawers
Right cover
Deck side cover
SRDF
Front cover
Power cord*

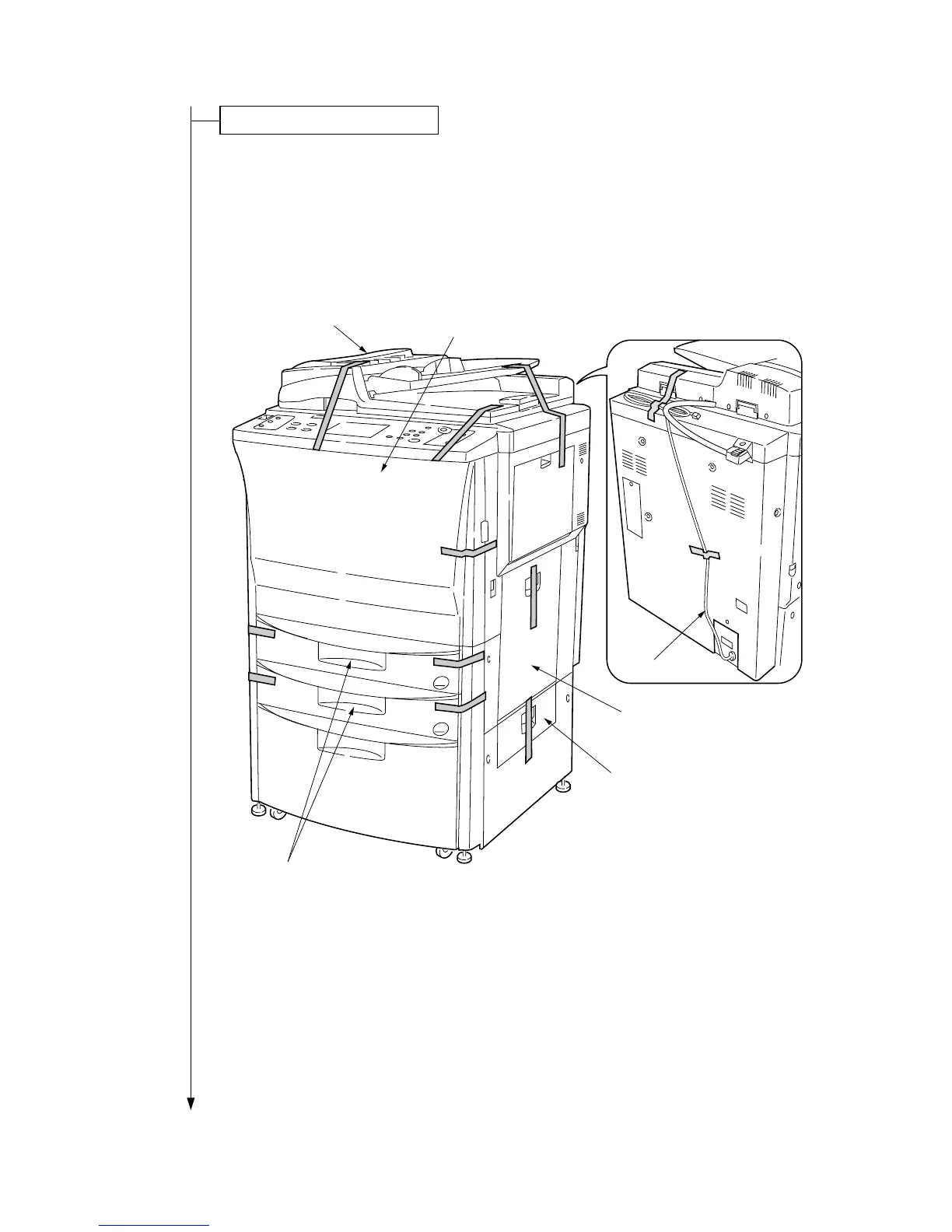

Figure 3-1-9
* For 120 V specifications only.
Remove the tapes. (52 ppm)
