Kyocera KM-4230

3-1-34
2A3/4

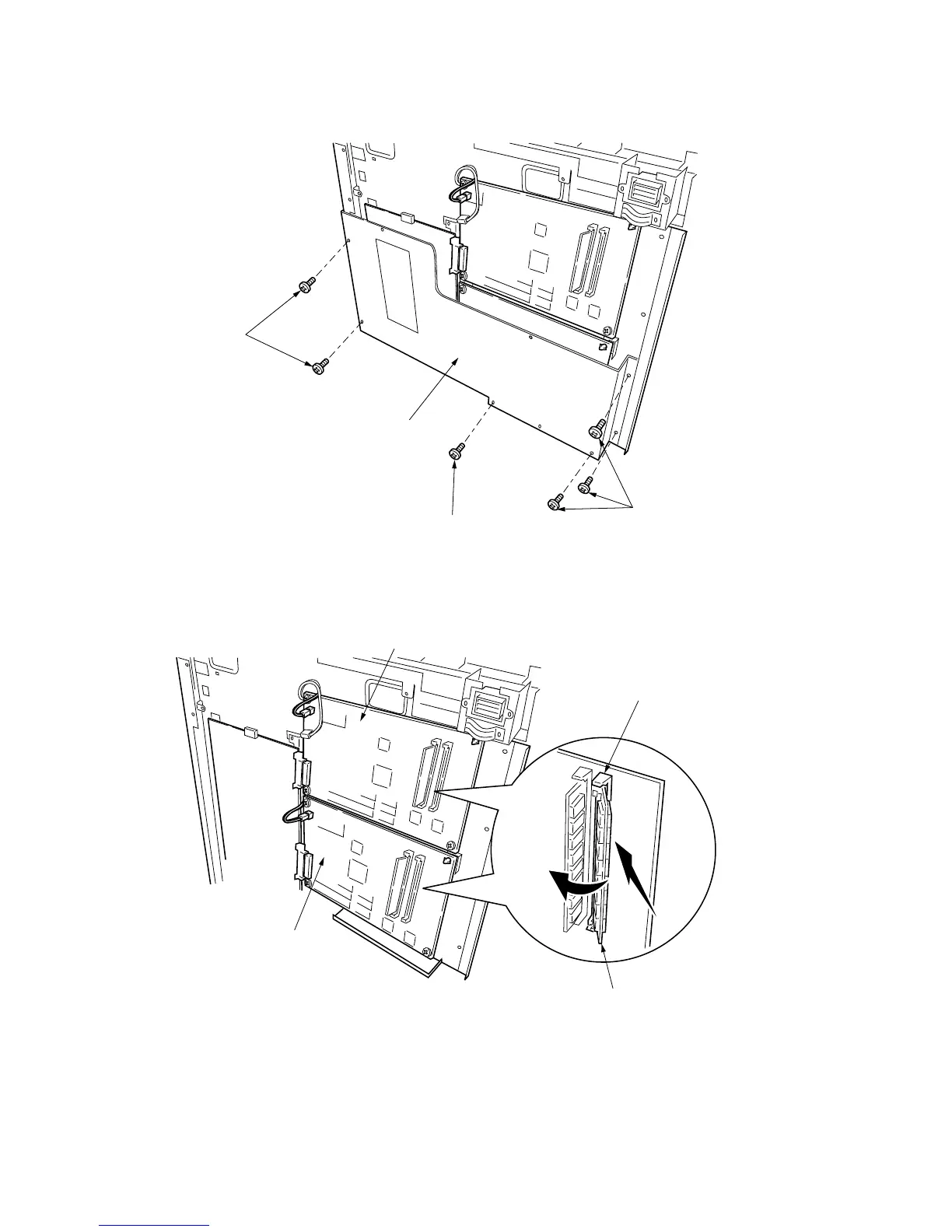

4. Remove the six screws holding the sequence cover and then the cover.
M4
Screws
Screws
Screws
Sequence cover
Figure 3-1-42
5. Fit an image memory into the add-on memory slot on the memory copy PCB.
2
1
Memory copy PCB 2
Memory copy PCB 1
Add-on memory slot
Image memory
Figure 3-1-43
6. Refit all removed parts.
