2A3/4
3-3-7
13. Replace the forwarding pulley and upper and lower paper feed pulleys.
14. Refit all removed parts.
Caution:

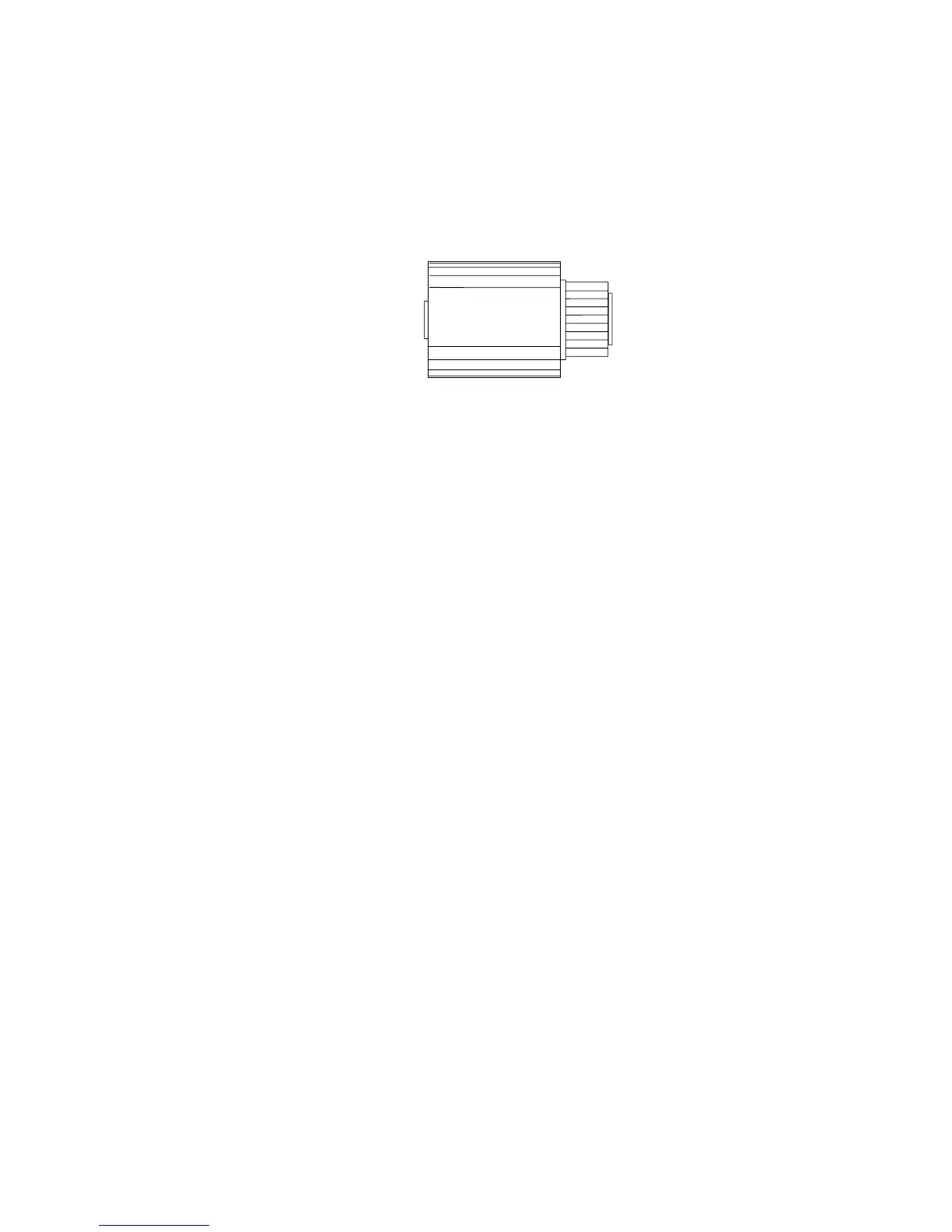

• When fitting the forwarding pulley, orient it correctly as shown in Figure 3-3-7.
Forwarding pulley
Machine front Machine rear
Figure 3-3-7
• When fitting the upper paper feed pulley, keep its blue end toward the machine front.
• After fitting the upper paper feed pulley, refit the wires which were removed in step 8
in the paper feed housing notches.
• When refitting the clutch, be sure to refit the stop.
