Each drawer consists of a lift driven by the lift motor and other components. Each
drawer can hold up to 550 sheets of paper.
Paper is fed from the drawer by the rotation of the forwarding pulley and upper paper
feed pulley. The lower paper feed pulley prevents multiple sheets from being fed at one
time, via the torque limiter.
CN13-4
CN13-13
CN13-7
CN13-10
CN8-B11
CN8-B2
CN13-1
CN12-A2
CN8-B9
CN12-A4
CN12-A8
CN15-3
CN15-9
CN12-A10
CN15-4
CN15-10
CN15-14
EPCB
CN15-13
RCL
RSW
FSW
PFSW1
FCL5
FCL4
FCL1
FCL2
PFSW2
PFCL
U
PFSW3
PFSW4
LICSW-U
PSW-U
PFCL
L
LICSW-L
PSW-L
FCL3

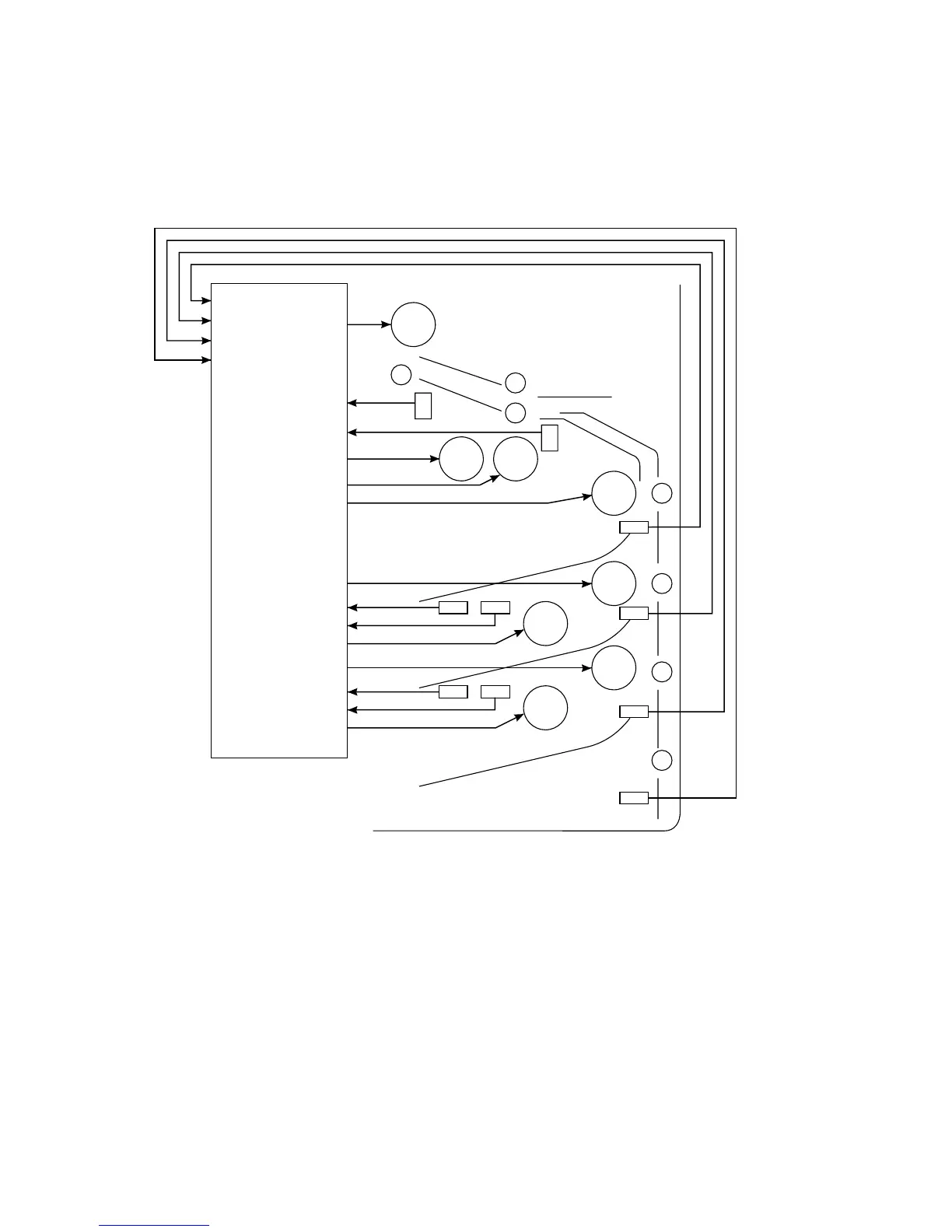

Figure 1-3-11 Drawer paper feed section block diagram
