Kyocera KM-4230

2A3/4
3-3-22
(6-4) Adjusting the amount of slack in the paper at the registration roller for
drawer, bypass and duplex feeds
Make the following adjustment if the leading edge of the copy image is missing or varies
randomly, or if the copy paper is Z-folded.

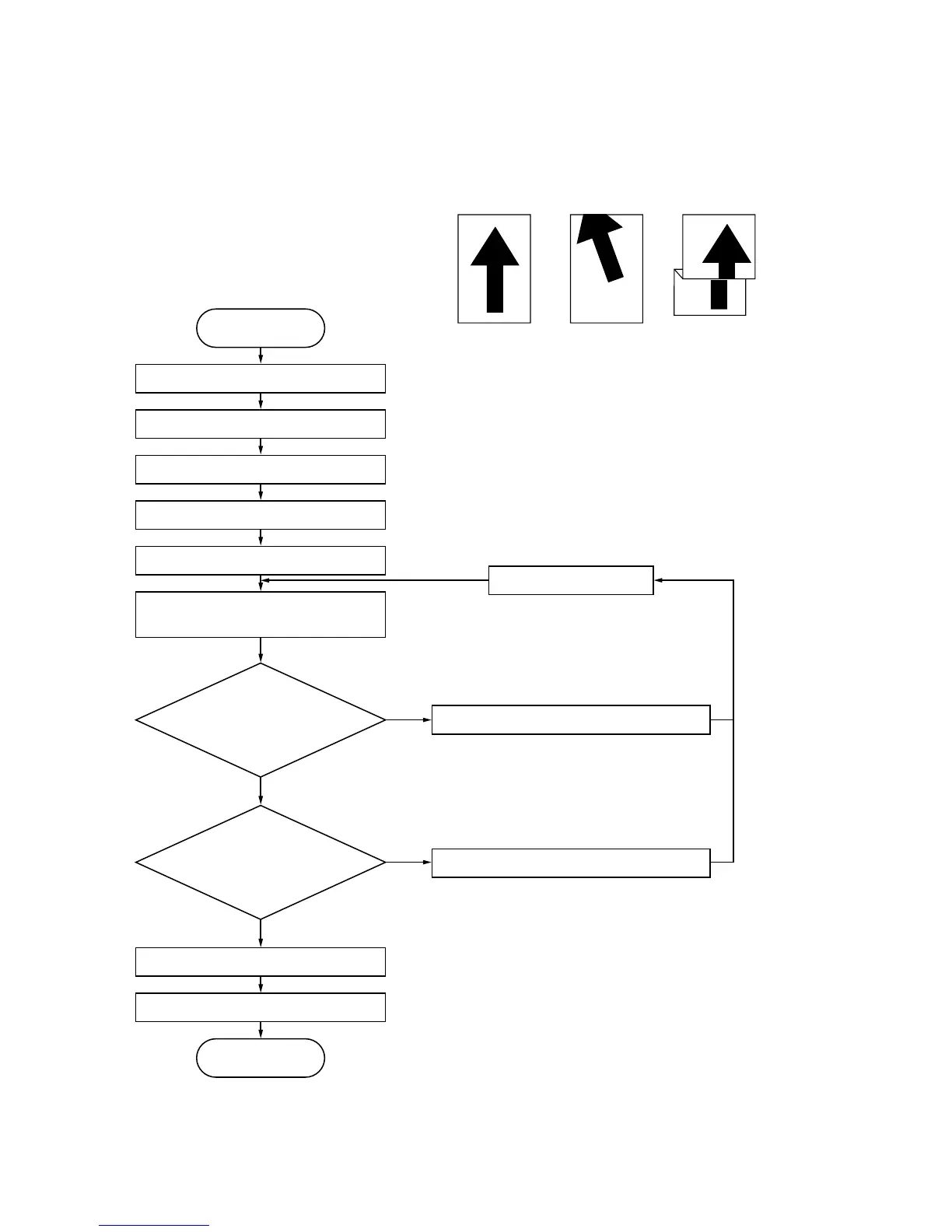

<Procedure>
End
Start
Enter maintenance mode.
Enter "051" using the numeric keys.
Yes
Yes
No
No
Press the print key.
Press the interrupt key.
Set an A3 size original and make a
test copy with the 100% magnification.
Press the stop/clear key.
Exit maintenance mode.
Decrease the value using the Down key.
Setting range: –30 - +20
Changing the value by 1 changes
the amount of slack by 1 mm.
Reference: DECK DATA: –20
BYPASS DATA: –5
DUPLEX DATA: –25
The greater the value,
the larger the amount of slack;
the smaller the value, the smaller
the amount of slack.
The new setting is stored.
Select the item to be adjusted.
DECK DATA: Amount of slack at the registration
roller for drawer feed
BYPASS DATA: Amount of slack at the registration
roller for bypass feed
DUPLEX DATA: Amount of slack at the registration
roller for duplex feed
Is the leading
edge of the image missing
or varying randomly (copy
example 1)?
Is the copy
paper Z-folded (copy
example 2)?
Increase the value using the Up key.
Press the print key.
Figure 3-3-27
Original Copy
example 1
Copy
example 2
