( 4 ) Replacing the developing duct filter
Replace the developing duct filter as follows.
<Procedure>
1. Open the front cover.
2. Slide off the developing duct cover downward.
3. Replace the developing duct filter.
Caution: When fitting the developing duct filter, ensure that the harder side of the filter
faces the fan.
4. Refit all removed parts.
Developing duct filter
Developing duct cover

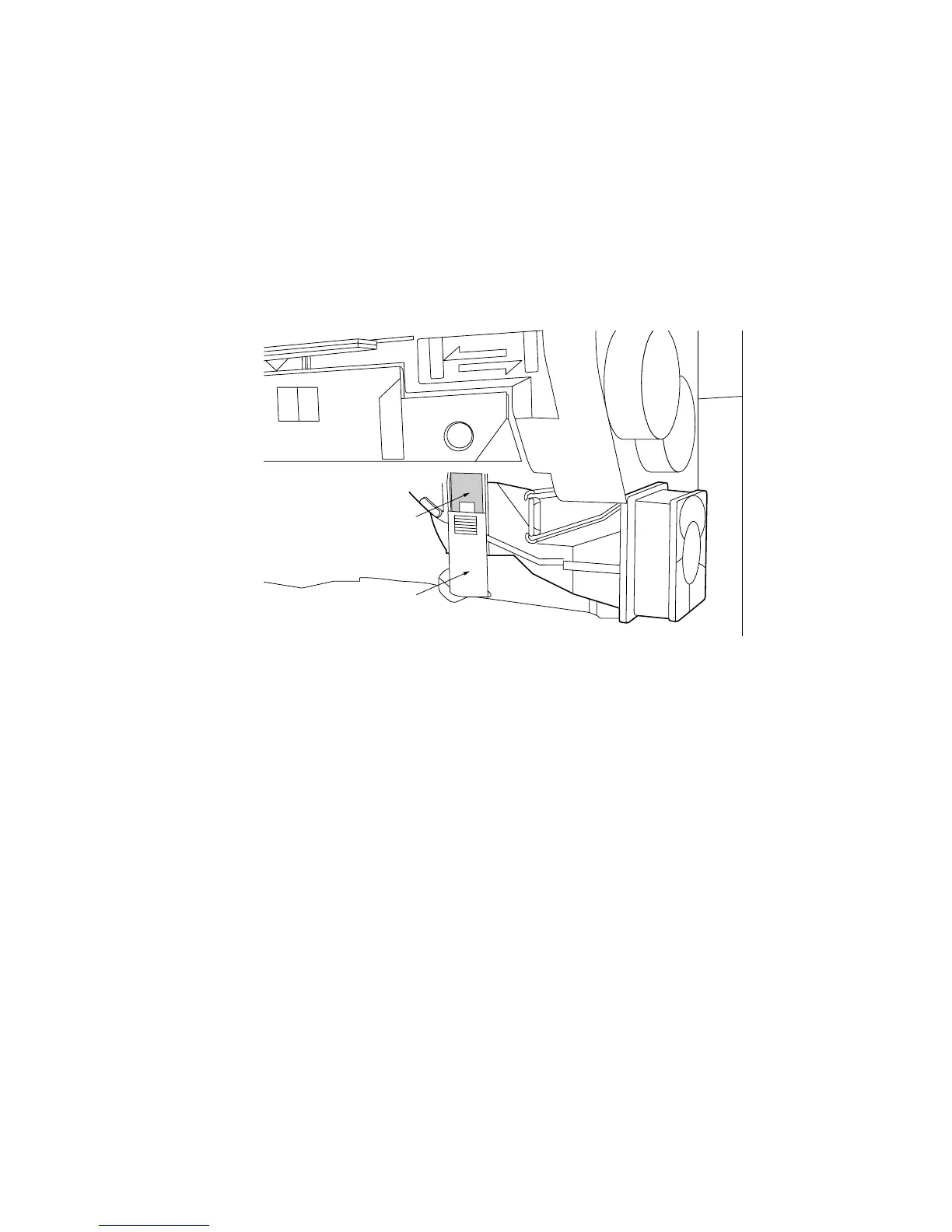

Figure 3-3-65 Detaching the developing duct filter
