Kyocera KM-8030

2FB/2FC-4
1-6-8
Detaching the paper feed pulley and forwarding pulley of cassette 2

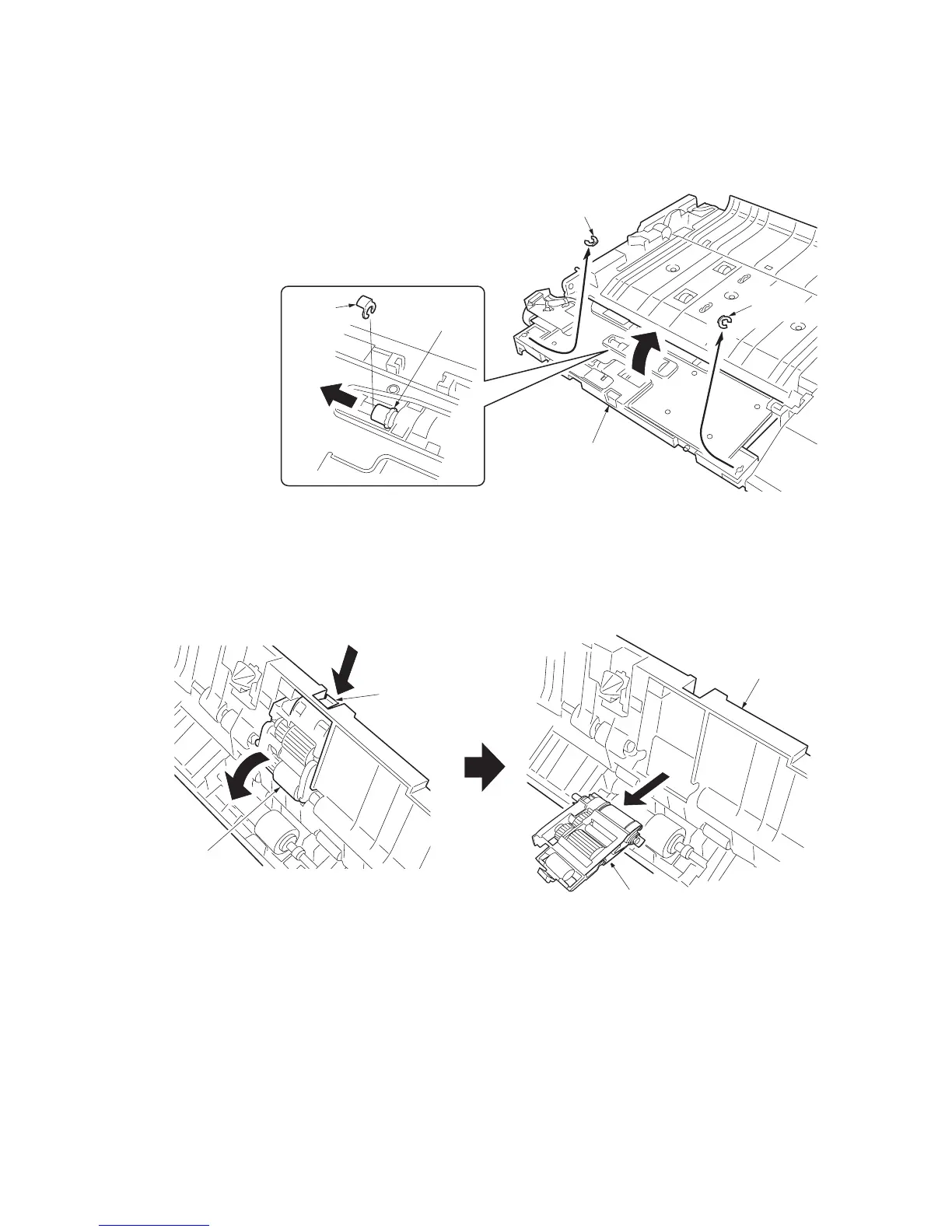

23. Remove the stop ring and slide the joint in
the direction of the arrow.
24. Remove two stop rings and open the pri-
mary paper feed unit of cassette 2.
Figure 1-6-15
25. Release the hook of the paper feed pulley
unit and push down the unit in the direction
of the arrow.
26. Remove the paper feed unit from the pri-
mary paper feed unit of cassette 2.
Figure 1-6-16
27. Remove the paper feed pulley and forward-
ing pulley from the paper feed pulley unit,
and then clean or replace the pulleys (see
pages 1-6-5 and 1-6-6).
Primary paper feed unit
of cassette 2
Stop ring
Stop ring
Stop ring
Joint
Hook
Paper feed
pulley unit
Paper feed
pulley unit
Primary paper feed unit
of cassette 2
