2-1-3 Optical section
The optical section consists of the scanner, mirror frame and image scanning unit for scanning and the laser scanner unit
for printing.

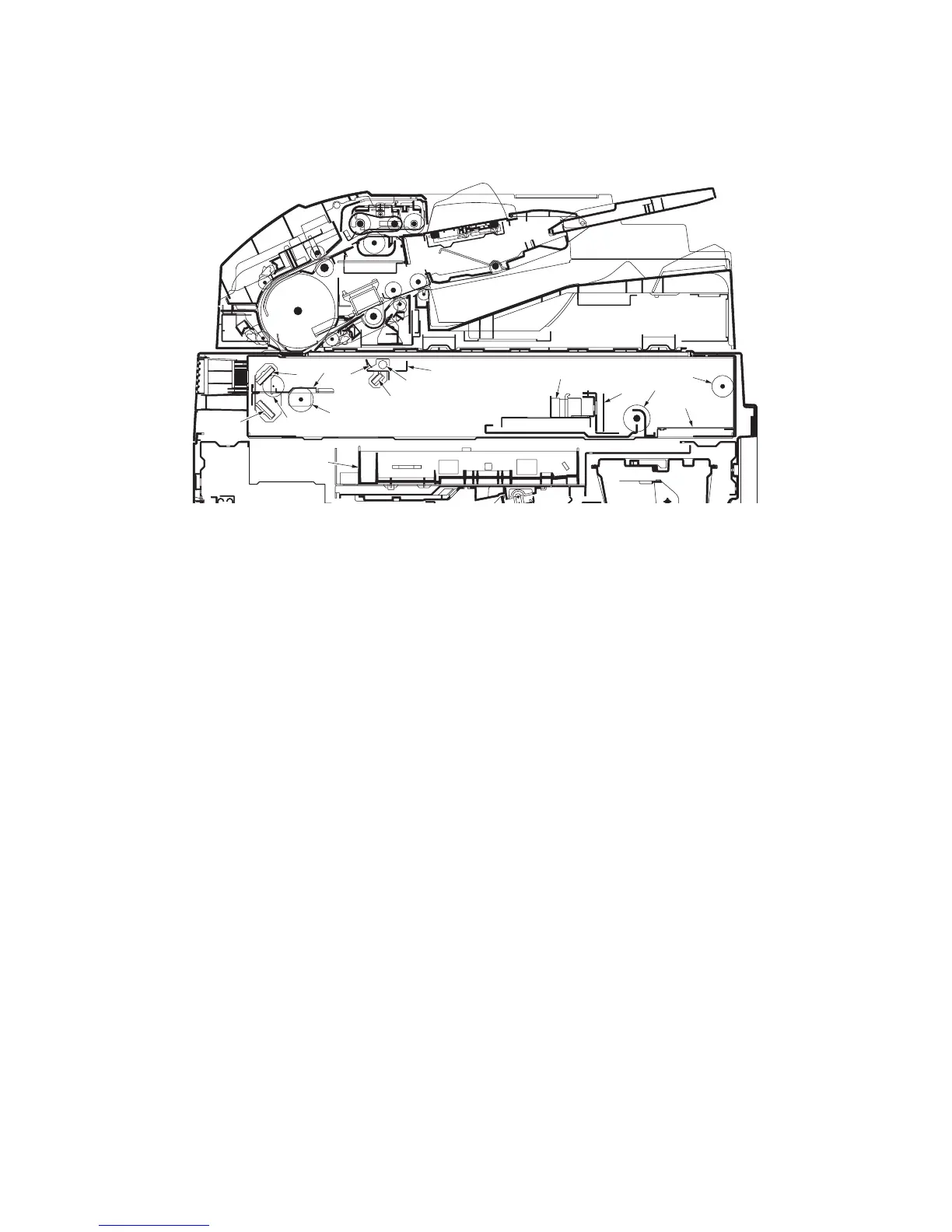

Figure 2-1-12 Optical section















(1) Laser scanner unit (LSU)
(2) Mirror B
(3) Mirror B
(4) Scanner pulley
(5) Lamp wire pulley
(6) Mirror 2 frame
(7) Scanner reflector
(8) Mirror A
(9) Exposure lamp (EL)
(10) Mirror 1 frame
(11) ISU lens
(12) CCD PWB (CCDPWB)
(13) Drum pulley
(14) Scanner pulley
(15) SHD PWB (SHDPWB)
