Kyocera KM-8030

2FB/2FC
1-6-31

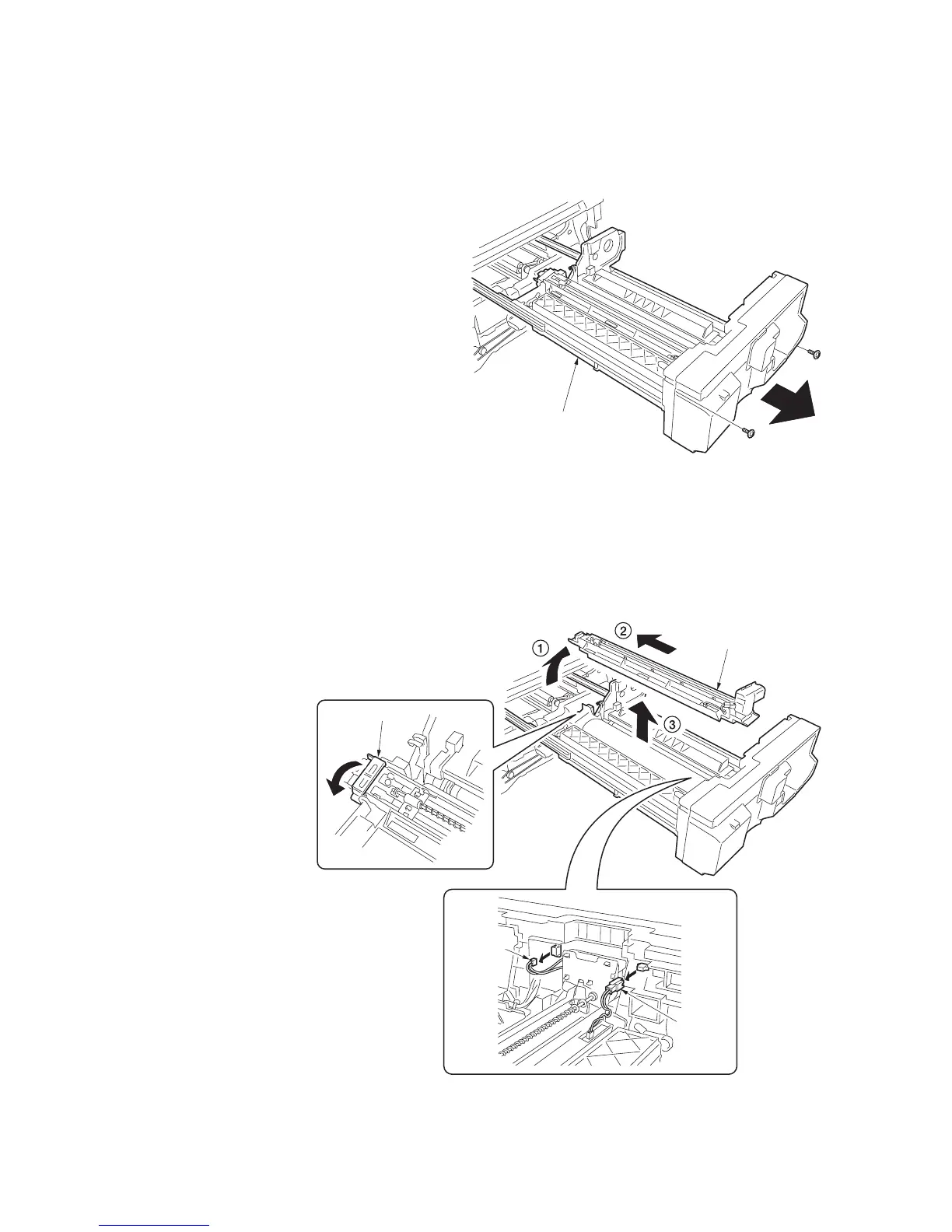

1-6-3 Main charging section
(1) Detaching and refitting the main charger unit
Procedure
1. Open front cover and turn the lever A2 to the
left.
2. Remove the toner container.
3. Remove two screws and then pull out the
image formation unit.
Figure 1-6-57
4. Remove two connectors and release the
lock lever.
5. Raise the rear of the main charger unit and
slide the unit to machine rear.
Remove the main charger unit from the
image formation unit.
Figure 1-6-58
Image formation unit
Main charger unit
Lock lever
Connector
Connector
