Kyocera KM-8030

2FB/2FC
1-1-17

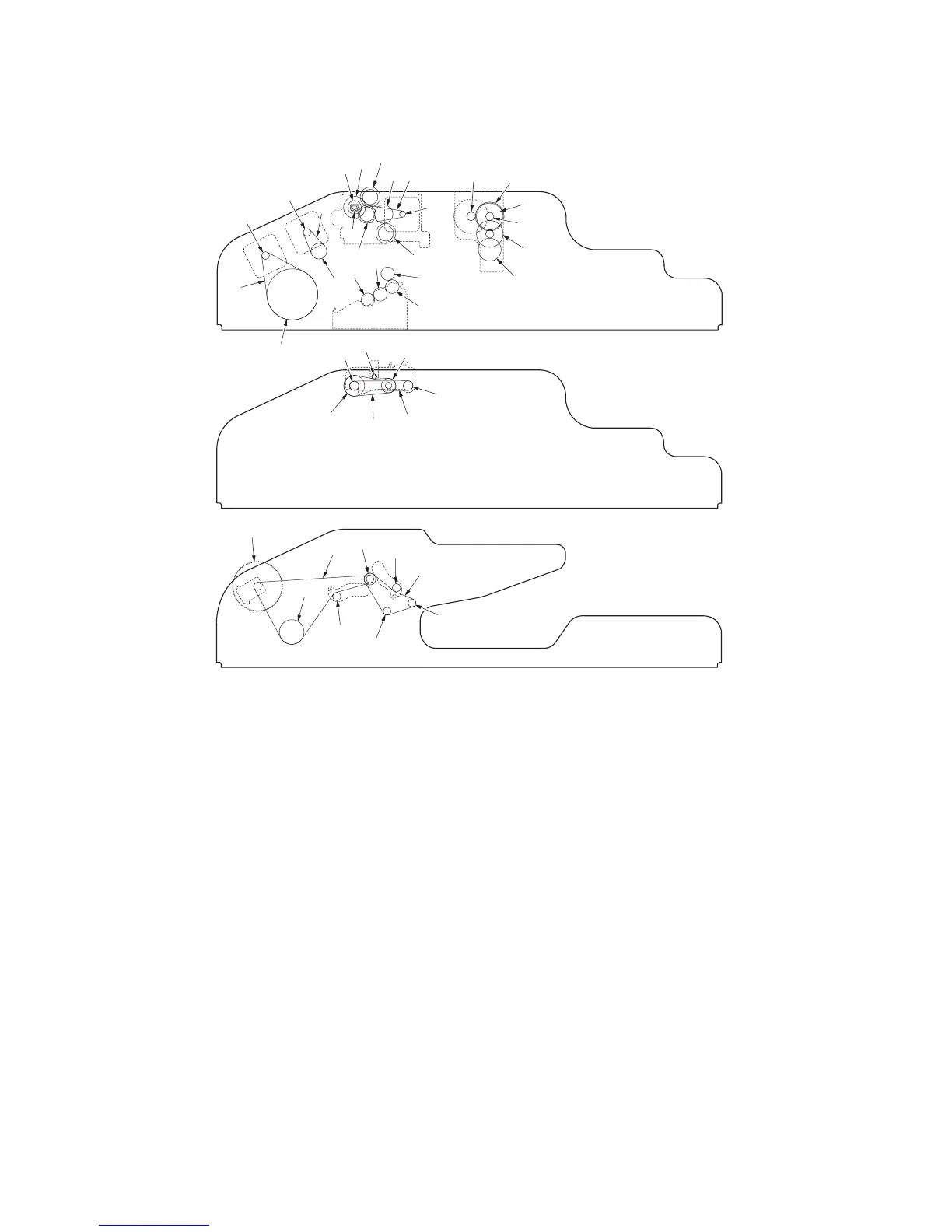

(11) Drive system 11 (Document processor)
Figure 1-1-18









































1. Original conveying motor
2. Timing belt C motor 244
3. Pulley C roller 99
4. Original registration motor
5. Pulley R roller 32
6. Timing belt R motor 102
7. Original feed motor
8. Belt 138 feed
9. Gear 30/23
10. Gear 30/23
11. Gear 28
12. Gear Z22ZP35
13. Gear 33
14. Gear 20
15. Joint PF drive
16. DP lift motor
17. Gear 69 joint
18. Gear 20/65 idle
19. Gear 20 joint
20. Gear 20/65 idle
21. Gear lift 55
22. Gear CIS roller 20
23. Gear CIS idle 21
24. Gear CIS idle 21
25. Gear CIS roller 20
26. Pulley 20
27. Pulley 20
28. Belt 170 LF
29. Collar PF A
30. Roller tension
31. Belt PF
32. Collar PF B
33. Pulley C roller 48
34. Dial jam remover
35. Timing belt C idle 370
36. Pulley 10
37. Pulley C idle 16/24
38. Pulley E roller
39. Pulley E roller
40. Timing belt E roller 174
41. Pulley 10
