(2) Detaching and refitting the developing rear fan filter
Follow the procedure below to replace the developing rear fan filter.
Procedure
1. Remove the screw and then remove the
developing fan cover.

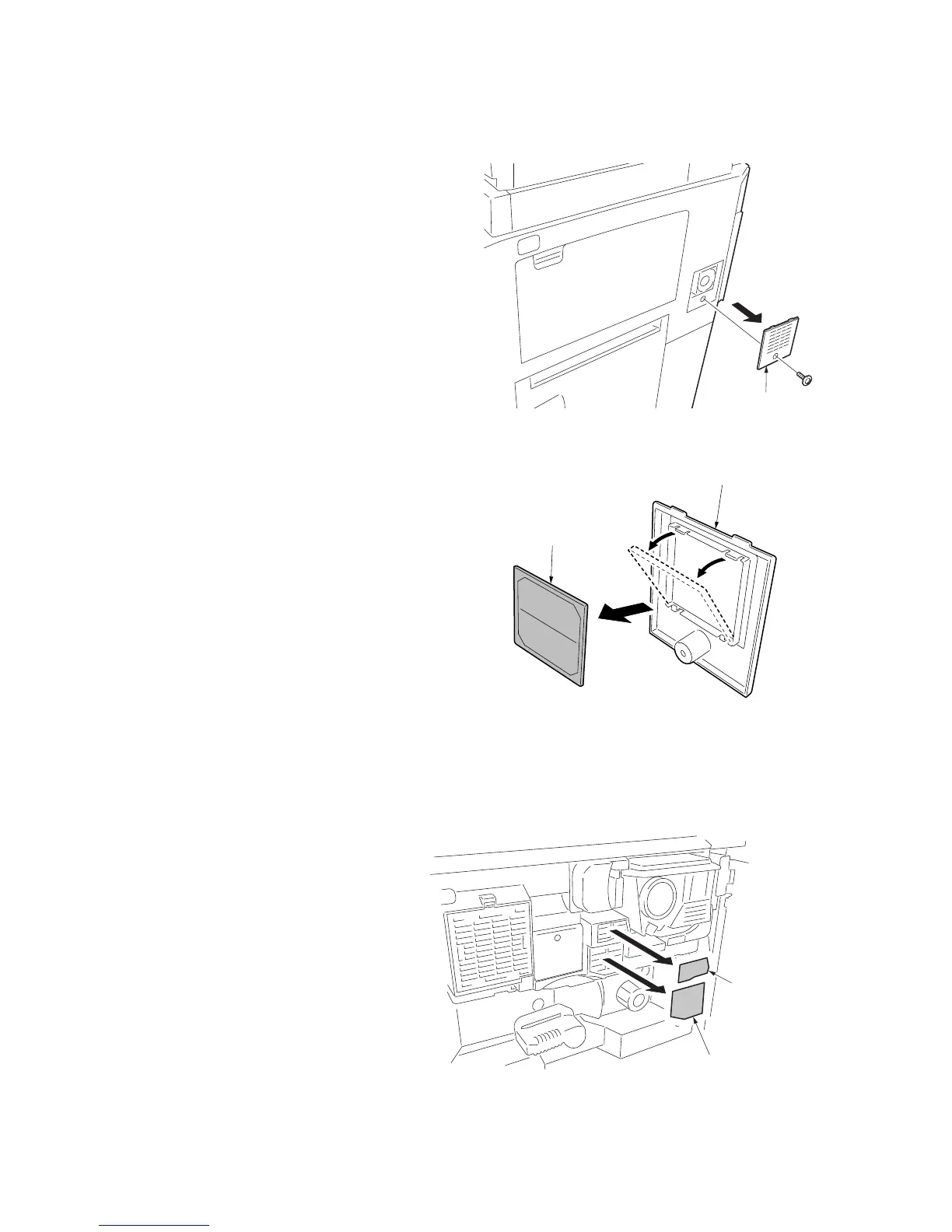

Figure 1-6-187
2. Remove the developing rear fan filter from
the developing fan cover.
3. Replace the developing rear fan filter and
attach the developing fan cover.
4. Refit the developing fan cover.
Figure 1-6-188
(3) Detaching and refitting the developing front fan filters
Follow the procedure below to replace the developing front fan filters.
Procedure
1. Open the front cover.
2. Remove developing front fan filter 1 and 2.
3. Replace developing front fan filter 1 and 2,
and attach the filters.
Figure 1-6-189
Developing
fan cover
