10. Remove two screws from the rear fuser
housing.
11. Pull out the fuser heater M, S and L from the
fuser unit rear with the rear fuser housing.

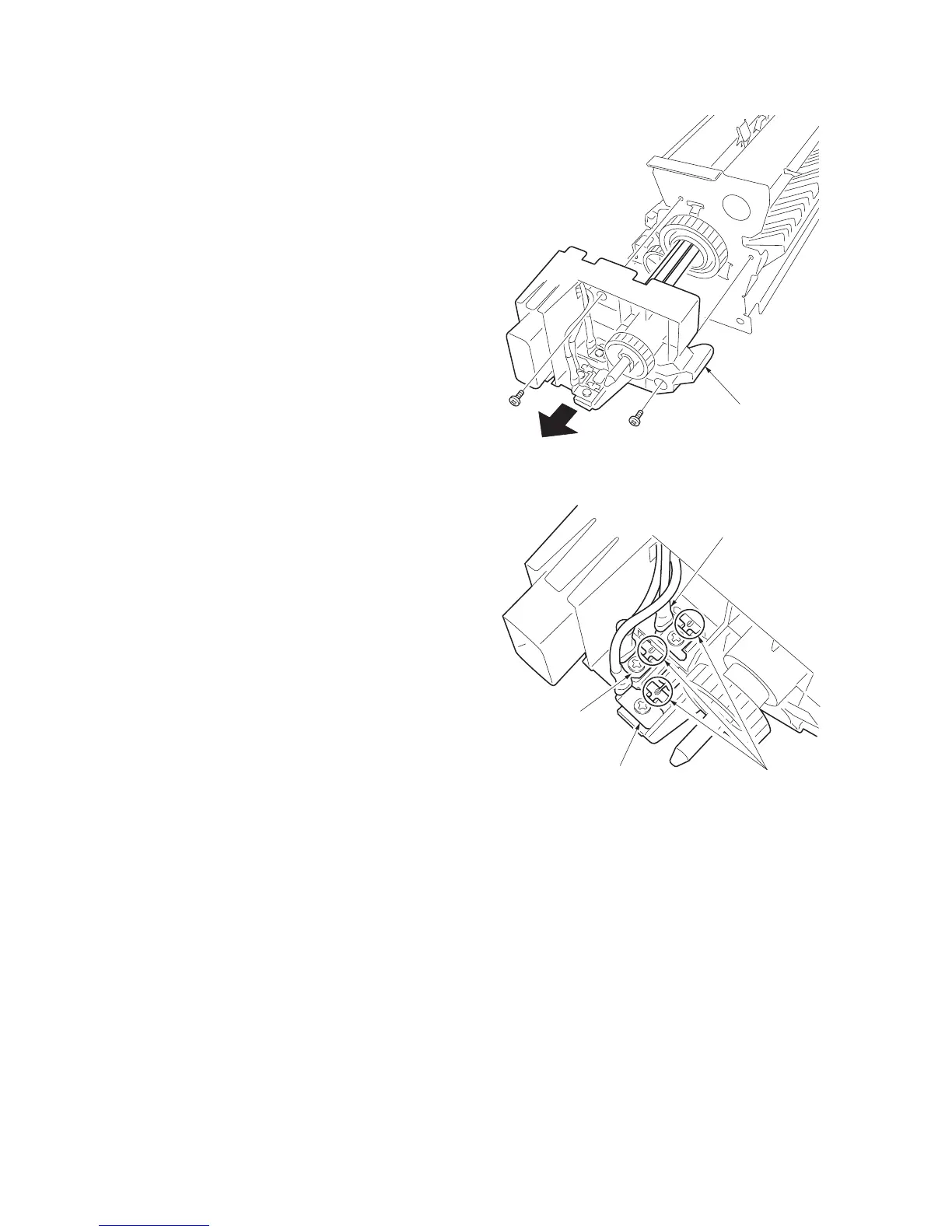

Figure 1-6-152
12. Check or replace the fuser heater M, S and
L, and refit the heaters to the fuser unit.
* When replacing the fuser heater M, S and L
individually, fit the heaters using the screws
directing the solder side of the heater rear
terminal on.
Figure 1-6-153
13. Refit the front fuser holder to the fuser unit
and connect the terminals of the fuser
heater M, S and L.
14. Refit the front fuser cover, upper fuser frame
and upper fuser cover to the fuser unit.
15. Refit the fuser unit.
Rear fuser housing
Fuser heater L
Fuser heater M
Fuser heater S
Solder sides
