6. Reattach four wire saddles (a) to the main uint bottom frame (b).
7. Reattach the cassette heater(d) with two screws(c)(M3×8).

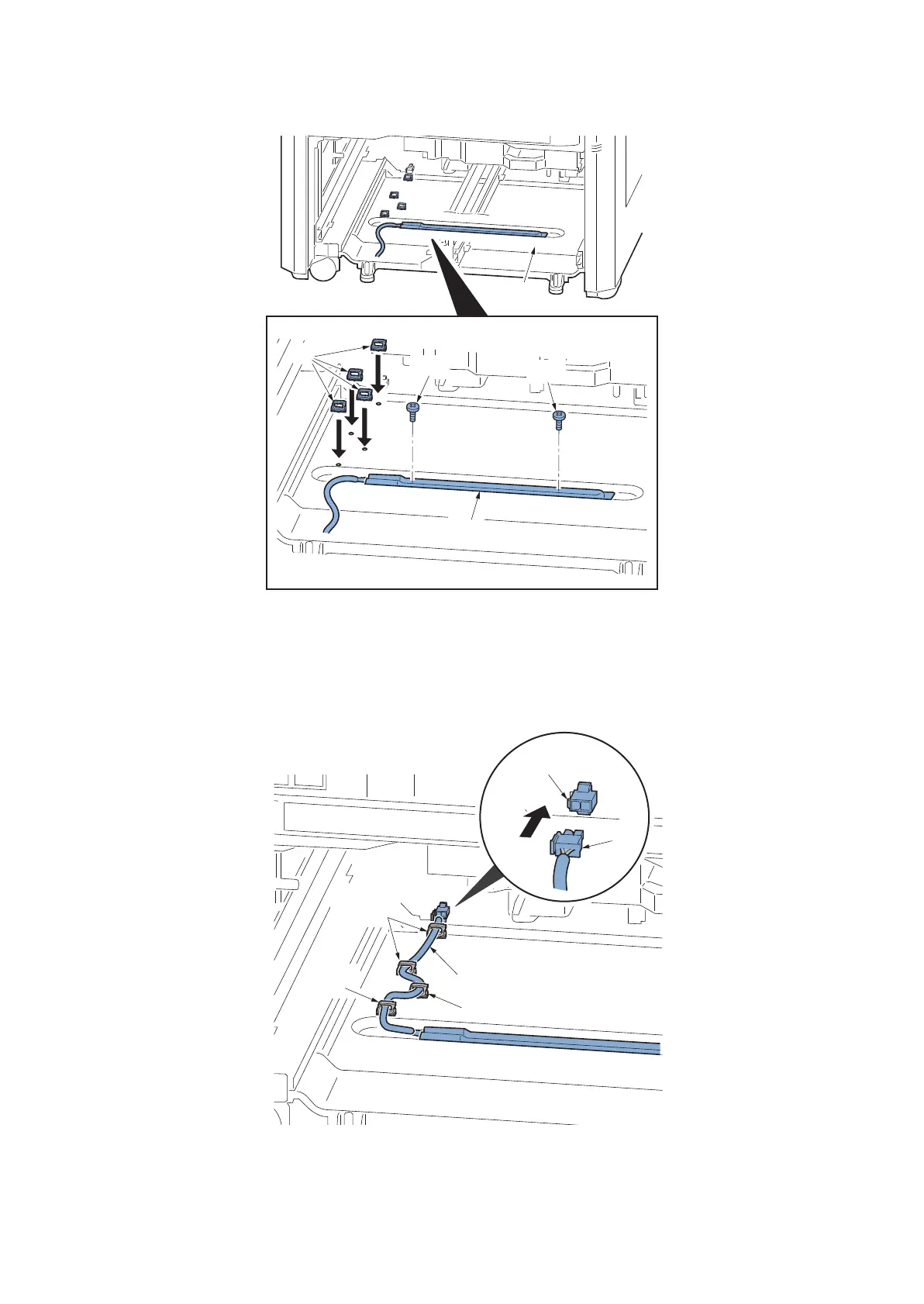

Figure 2-210
8. Pass through the cassette heater wire (a) in four wire saddles (b).
9. Connect the connector (c) of the cassette heater to the connector (d) of the main unit rear frame.
Figure 2-211
