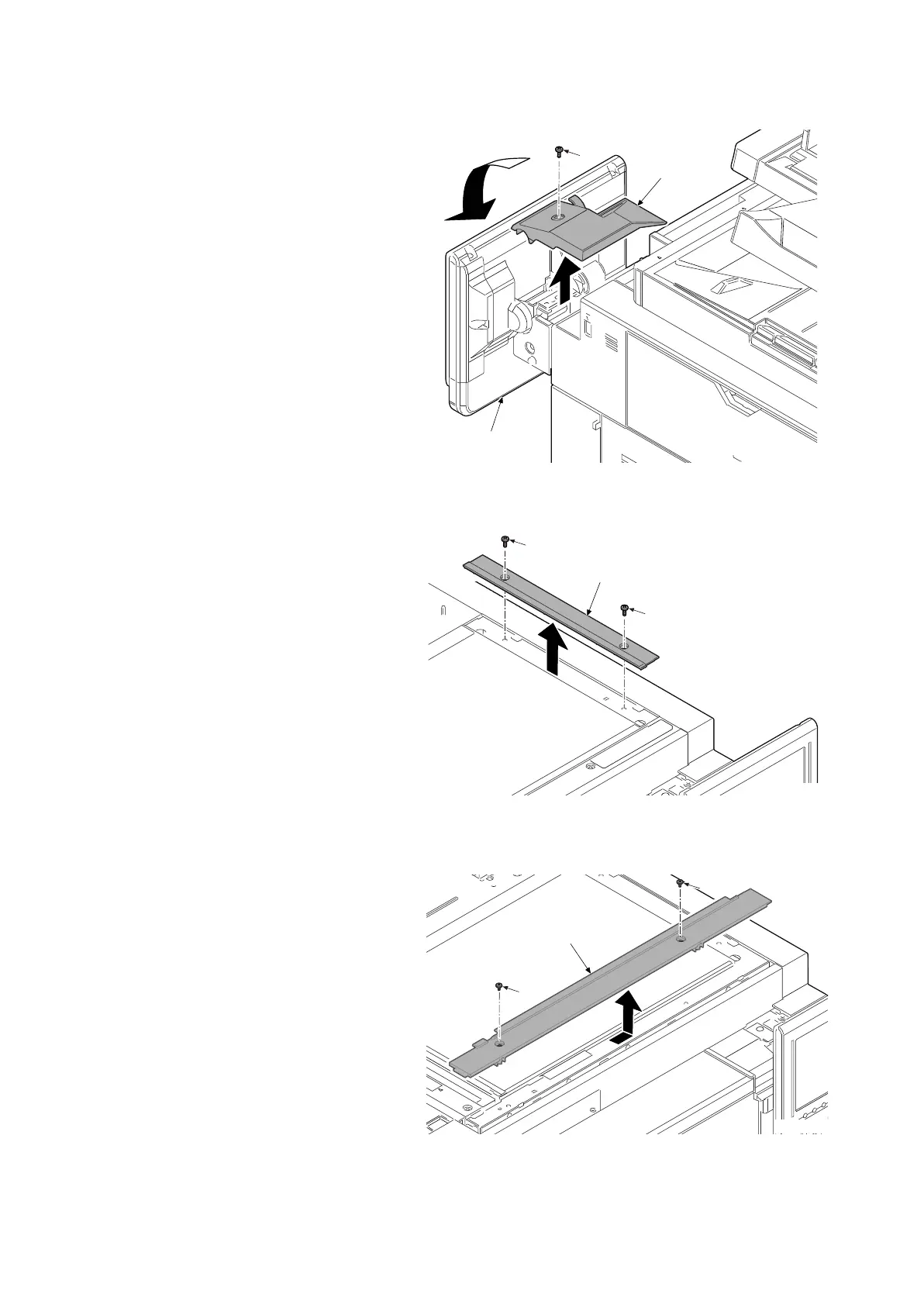

9. Pull up the operation unit (a).
10. Remove one screw (b) (M3x8) and then
remove the rear operation unit cover(c)
in the direction of the arrow.
Figure 4-144
11. Remove two screws (a)(M4x8) and
then detach the ISU right cover (b) in
the direction of the arrow.
Figure 4-145
12. Remove two pins (a) (M4x6) and then
detach the glass front cover (b) by slid-
ing in the direction of the arrow.
Figure 4-146
c
b
a
14j0214
a
b
a
14j0222
a
b
a
14j0223
