L-Acoustics A15 Series User Manual

Rigging system description

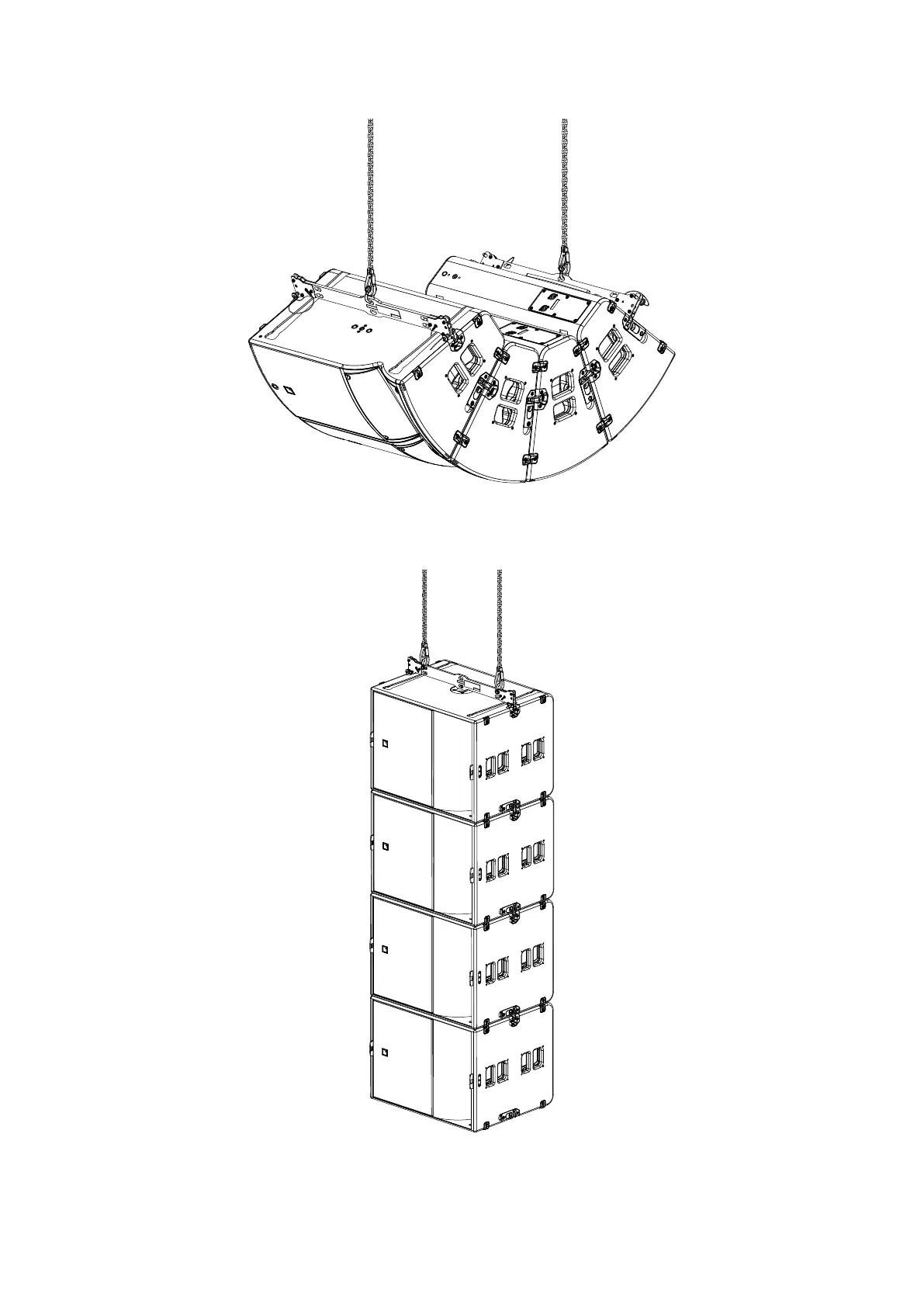

Secured at the bottom of the array, A15-RIGBAR can be used as a pullback either with A15-BUMP or another A15-
RIGBAR as the main lifting accessory.
A15-RIGBAR can be used as the main lifting accessory, to provide a lightweight solution for ying four A15 Wide/Focus
or KS21 with one or two lifting points.
28 A15 owner's manual (EN) version 1.2

L-Acoustics A15 Series Specifications

General

Nominal impedance	8 ohms
Frequency Response	44 Hz - 20 kHz
Maximum SPL	141 dB
Amplification	LA4X / LA8 / LA12X
Weight	33 kg
LF Transducers	1 x 15'' neodymium
HF Transducers	1 x 3'' diaphragm compression driver
Power Handling	800 W
Connectors	2 x 4-point speakON
