L-Acoustics A15 Series User Manual

Loudspeaker congurations

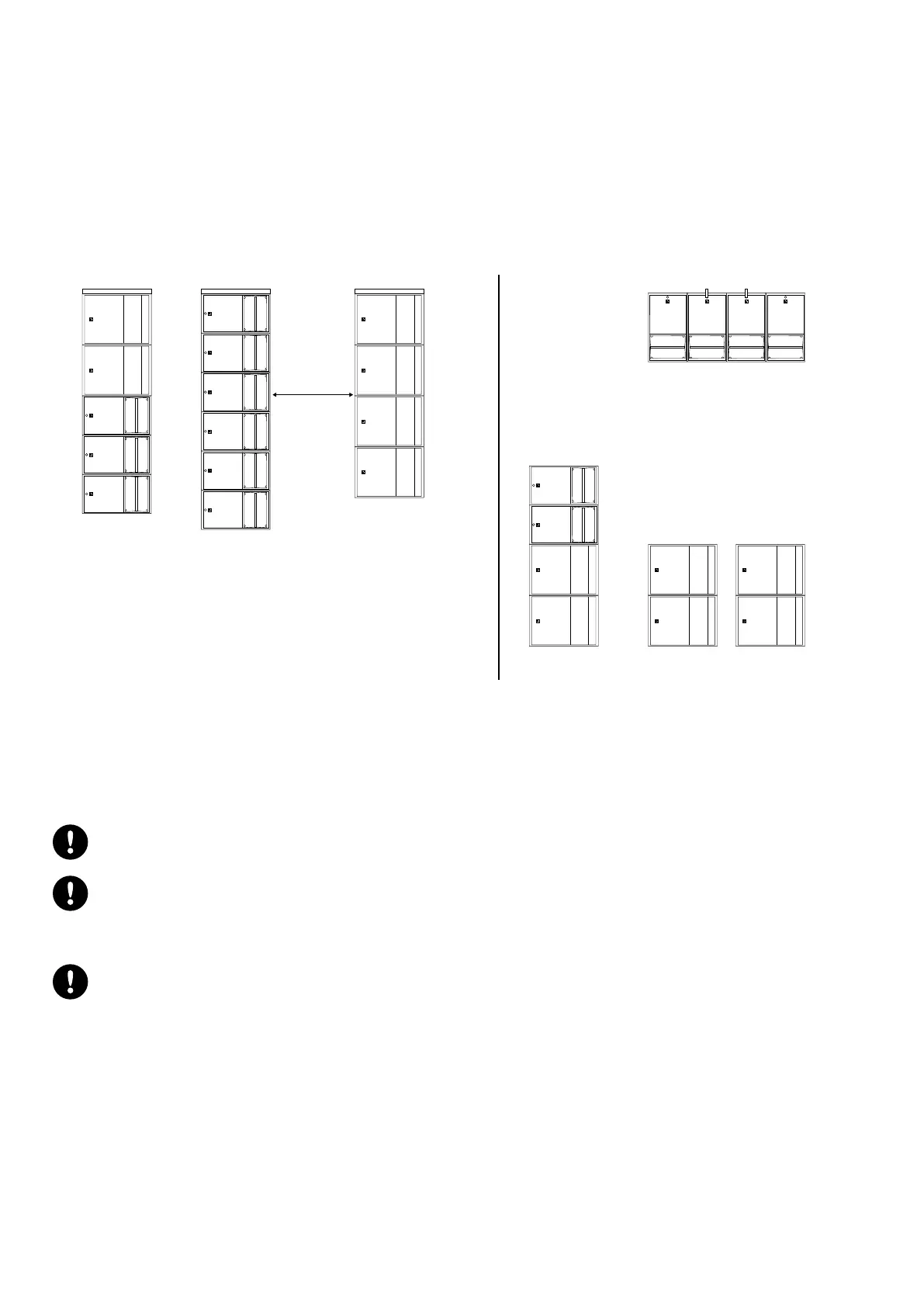

A15 Wide/Focus line source with low-frequency element
In this conguration, the bandwidth of the A15 system is extended down to 29 Hz and the LF contour is reinforced.
The [KS21_60] preset provides KS21 with an upper frequency limit at 60 Hz.
The A15 Focus, A15 Wide and KS21 enclosures are driven by the LA4X / LA8 / LA12X amplied controllers.
3 A15 Wide/Focus : 2 KS21 1 A15 Wide/Focus : 1 KS21
reinforced contour reinforced contour
+ 3 dB at 55 Hz
max
2.8 m / 9.2 ft
Enclosure A15 Wide/Focus KS21
Preset [A15] [KS21_60]
Recommended ratio 1 A15 Wide/Focus : 1 KS21
Frequency range (-10 dB) 29 Hz - 20 kHz
Use [xxxx_xx_C] on a reversed subwoofer in a cardioid conguration
The cardioid conguration consists in reversing 1 element in an array of 4 subwoofers.
Grouping subwoofers
Place the subwoofer enclosures side by side. If not possible, the maximum distance between two adjacent
acoustic centers must be 2.8m or 1.7m if the upper frequency limit of the subwoofer system is at 60Hz or
100Hz, respectively.
Delay values
Do not forget to add the pre-alignment and geometric delays depending on the conguration.
pre-alignment delays
[A15] or [A15_FI] + [KS21_60] A15 Wide/Focus = 0 ms KS21 = 2.6 ms
[A15] or [A15_FI] + [KS21_60_C] A15 Wide/Focus = 3.1 ms KS21 = 0 ms
46 A15 owner's manual (EN) version 1.2

L-Acoustics A15 Series Specifications

General

Nominal impedance	8 ohms
Frequency Response	44 Hz - 20 kHz
Maximum SPL	141 dB
Amplification	LA4X / LA8 / LA12X
Weight	33 kg
LF Transducers	1 x 15'' neodymium
HF Transducers	1 x 3'' diaphragm compression driver
Power Handling	800 W
Connectors	2 x 4-point speakON
