Installing an inclinometer on A15-BUMP
Installing an inclinometer on A15-BUMP
Tools
• torque screwdriver
• T20 Torx bit
• 7 mm wrench
About this task
A15-BUMP is equipped with a support plate for installing an optional inclinometer. Three models are compatible:
TEQSAS
®
LAP-TEQ PLUS (provided in the TECH TOOLCASE), TEQSAS
®
LAP-TEQ (legacy model), and KSG
®
RECLINE
Compact.
LAP-TEQ / LAP-TEQ PLUS sensor and display compatibility
The legacy LAP-TEQ sensors are compatible with the new TEQSAS
®
LAP-TEQ PLUS displays.
Conversely, the new sensors are not compatible with the legacy displays.

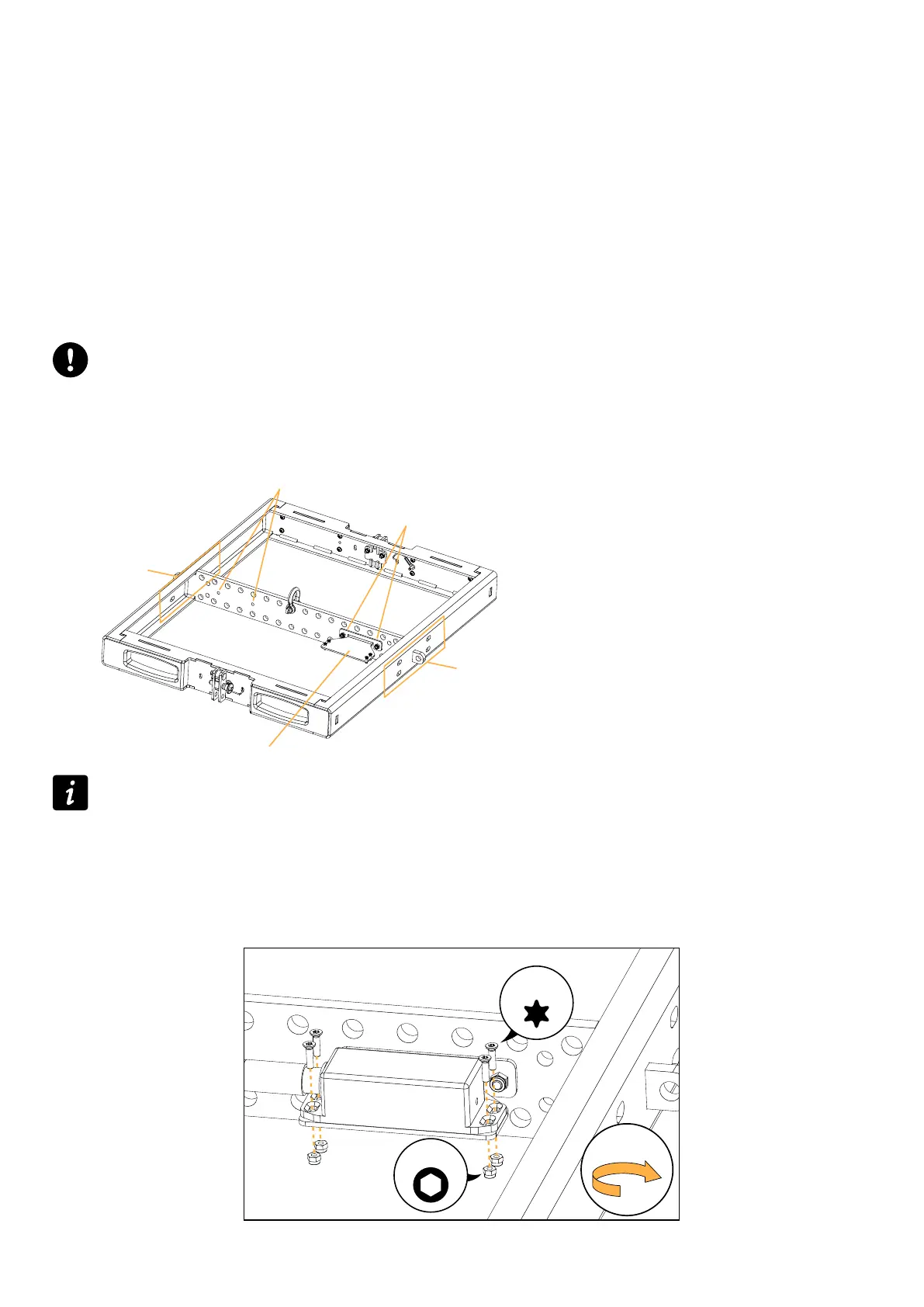

With two sets of xation points and eight slit openings, the position and orientation of the laser support plate can be
adapted to every use of the rigging frame.
support plate
slit openings (front)
slit openings (rear)
fixation points (front)
fixation points (rear)
Calibrating the inclinometer
Refer to the manufacturer instructions.
An additional XLR cable is needed.
Exploded view
Use the screws and nuts provided with A15-BUMP.
Before tightening the screws, align the laser with the slit opening.
T25
3 N.m
7 mm
96 A15 owner's manual (EN) version 1.2

L-Acoustics A15 Series Specifications

General

Nominal impedance	8 ohms
Frequency Response	44 Hz - 20 kHz
Maximum SPL	141 dB
Amplification	LA4X / LA8 / LA12X
Weight	33 kg
LF Transducers	1 x 15'' neodymium
HF Transducers	1 x 3'' diaphragm compression driver
Power Handling	800 W
Connectors	2 x 4-point speakON
