L-Acoustics A15 Series User Manual

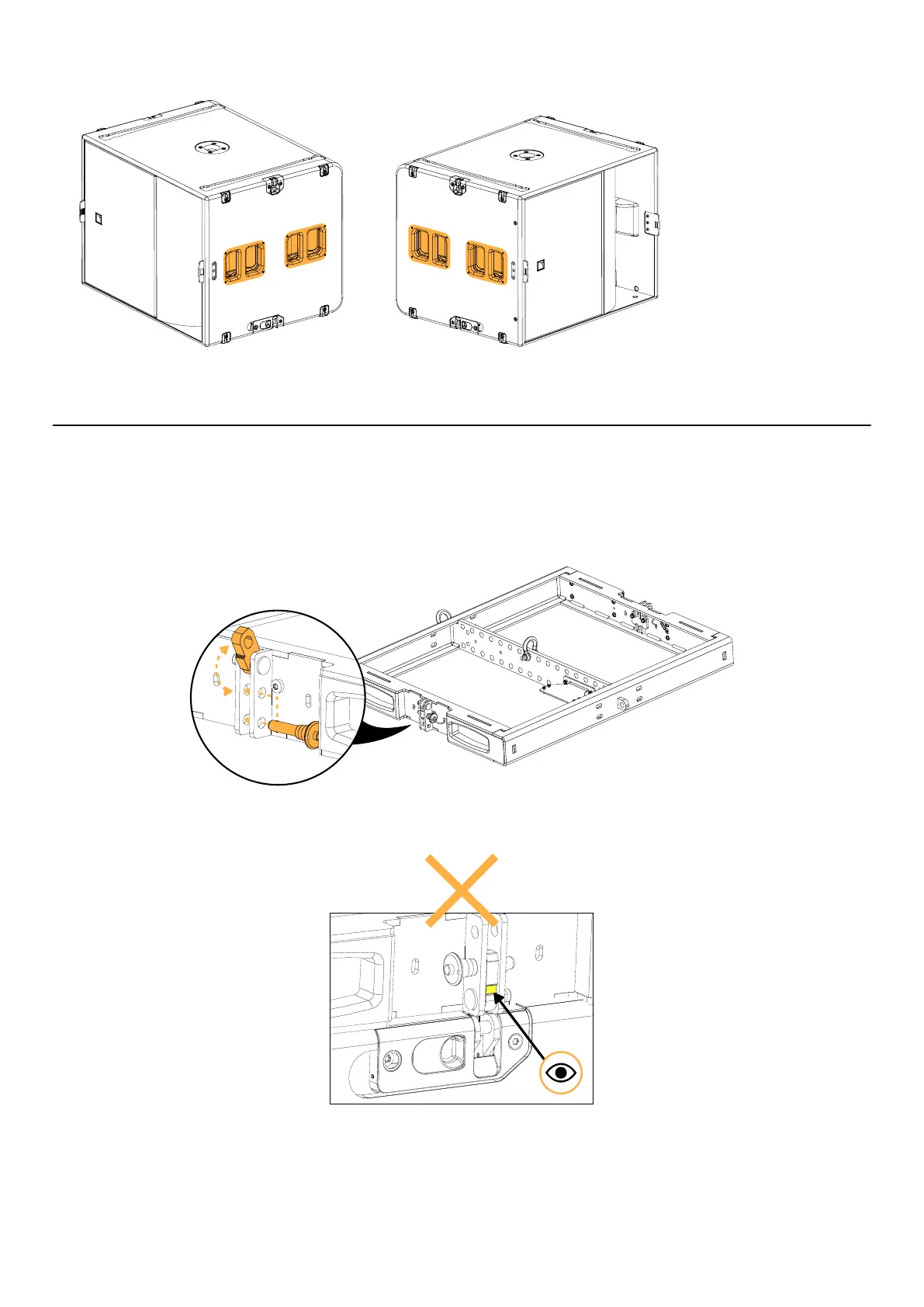

Rigging system description
Four handles are available for transportation.
Rigging elements for own arrays
A15-BUMP
A15-BUMP is a reversible rigging frame for ying vertical arrays of A15 Wide/Focus or KS21.
A15-BUMP is equipped with rotating rigging arms and ball-locking pins, to match the rigging systems of A15 Wide/
Focus or KS21 on either side.
The rigging arms are tted with yellow safety labels, that are visible when the rigging arm is not in use.
24 A15 owner's manual (EN) version 1.2

L-Acoustics A15 Series Specifications

General

Nominal impedance	8 ohms
Frequency Response	44 Hz - 20 kHz
Maximum SPL	141 dB
Amplification	LA4X / LA8 / LA12X
Weight	33 kg
LF Transducers	1 x 15'' neodymium
HF Transducers	1 x 3'' diaphragm compression driver
Power Handling	800 W
Connectors	2 x 4-point speakON
