L-Acoustics A15 Series User Manual

Rigging system description

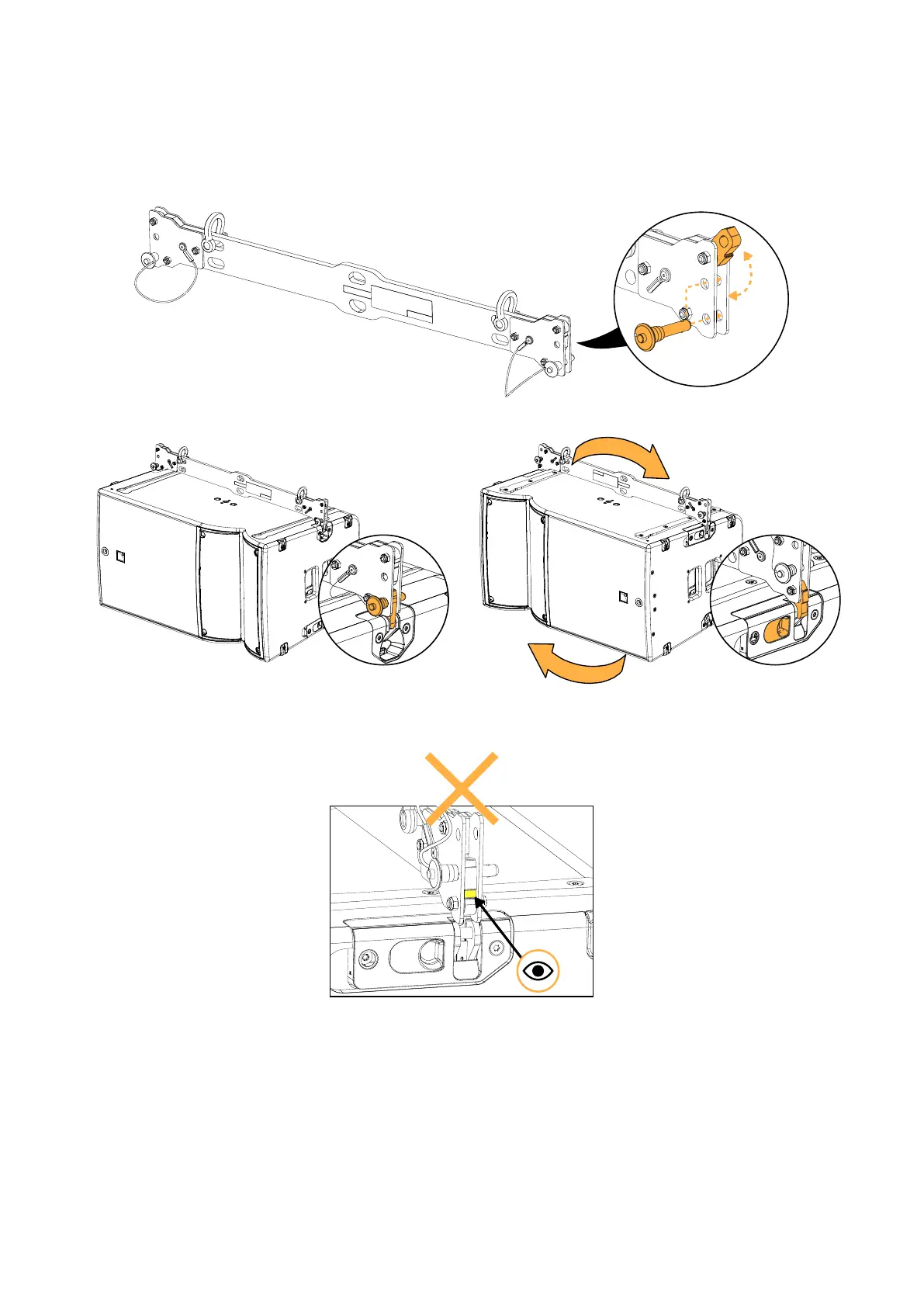

A15-RIGBAR
A15-RIGBAR is a reversible rigging bar. It can be used as a pullback or for ying vertical arrays of up to four A15
Wide/Focus or KS21.
A15-RIGBAR is equipped with rotating rigging arms and ball-locking pins, to match the rigging systems of A15 Wide/
Focus or KS21 on either side.
The rigging arms are tted with yellow safety labels, that are visible when the rigging arm is not in use.
A15 owner's manual (EN) version 1.2 27

L-Acoustics A15 Series Specifications

General

Nominal impedance	8 ohms
Frequency Response	44 Hz - 20 kHz
Maximum SPL	141 dB
Amplification	LA4X / LA8 / LA12X
Weight	33 kg
LF Transducers	1 x 15'' neodymium
HF Transducers	1 x 3'' diaphragm compression driver
Power Handling	800 W
Connectors	2 x 4-point speakON
