L-Acoustics A15 Series User Manual

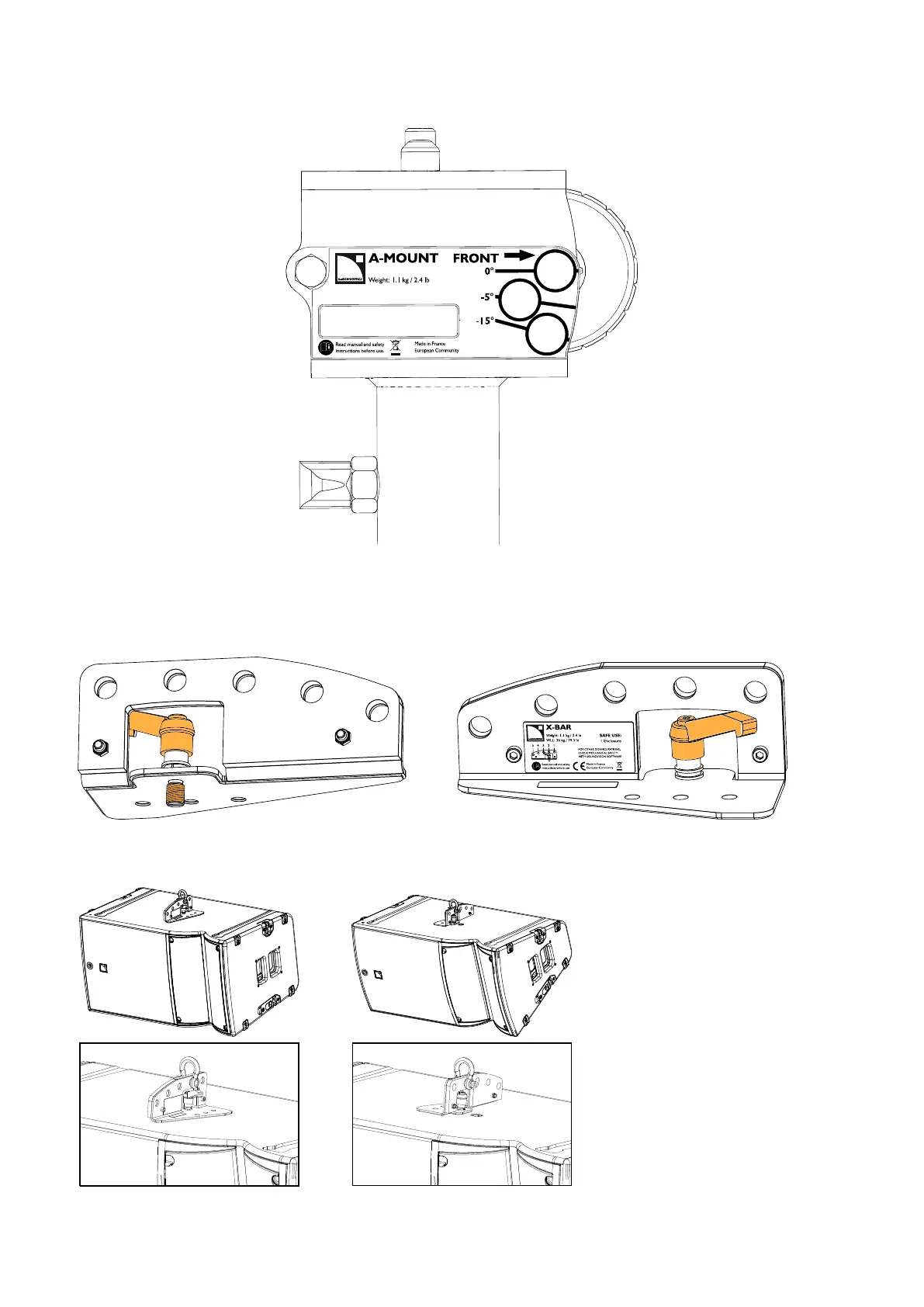

Rigging system description
The opening angle can be set to 0°, -5° and -15°.
Refer to Pole-mounting A15 Wide/Focus (p.76) for the list of realized site angles.
X-BAR
X-BAR is a rigging bar for ying A15 Wide/Focus. The rigging system consists of a threaded axis with a cam lever.
X-BAR is secured to the dedicated inserts on the enclosure, in front or rear extension position.
38 A15 owner's manual (EN) version 1.2

L-Acoustics A15 Series Specifications

General

Nominal impedance	8 ohms
Frequency Response	44 Hz - 20 kHz
Maximum SPL	141 dB
Amplification	LA4X / LA8 / LA12X
Weight	33 kg
LF Transducers	1 x 15'' neodymium
HF Transducers	1 x 3'' diaphragm compression driver
Power Handling	800 W
Connectors	2 x 4-point speakON
