L-Acoustics A15 Series User Manual

Connection to LA amplied controllers
Connection to LA amplied controllers
Enclosure drive capacity per amplied controller
Make sure the total number of connected enclosures does not exceed the maximum number of enclosures per controller
(refer to the footnotes).
LA4 LA4X LA8 LA12X
per output
*
/ total per output
*
/ total per output
*
/ total per output
*
/ total
A15 Wide/Focus — 1 / 4 2 / 8 3 / 12
KS21 — 1 / 4 2 / 6 2 / 8

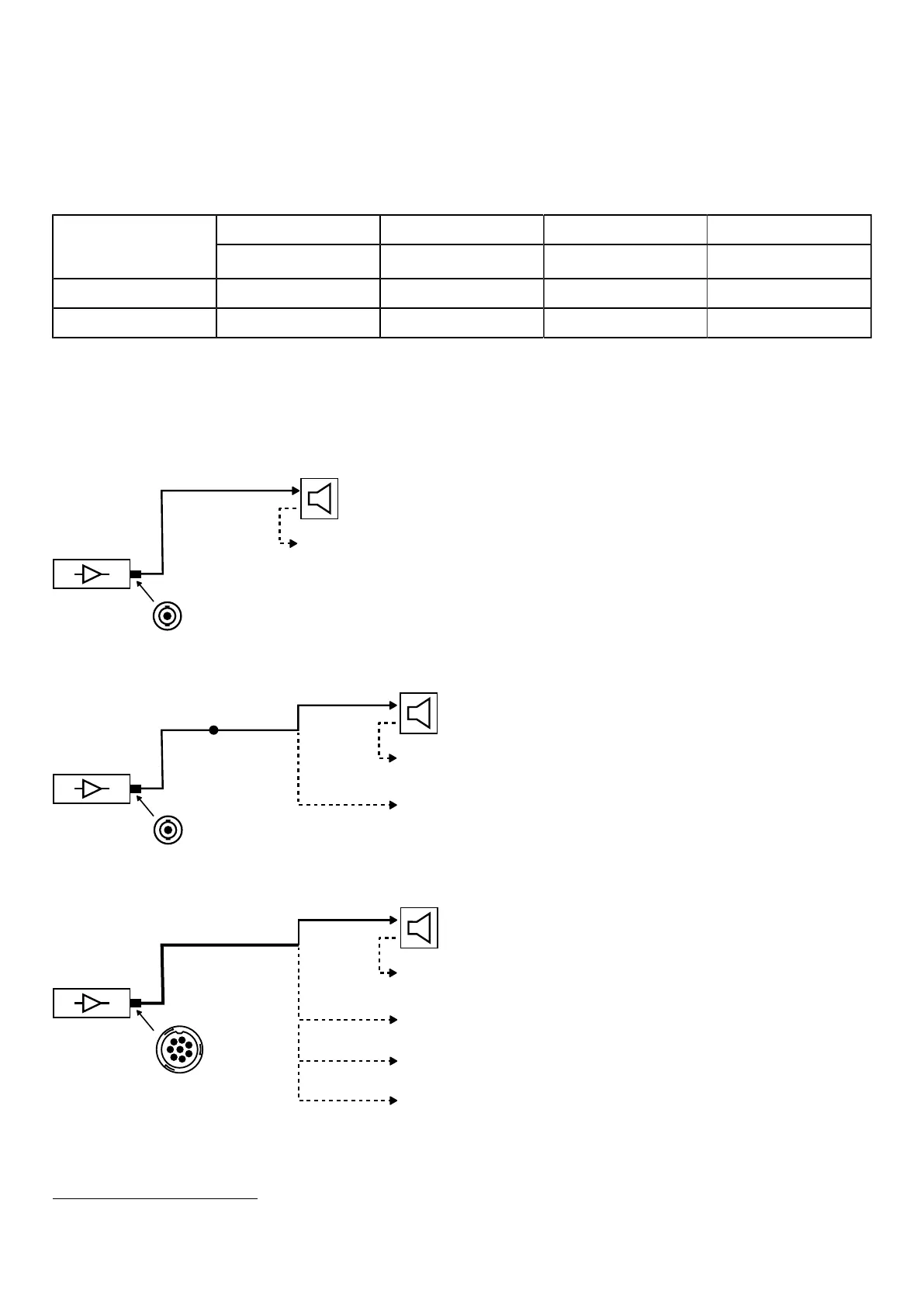

Cabling schemes for A15 Wide/Focus / KS21
Refer to the cabling schemes to connect the enclosures to different types of output connectors.
One-channel speakON output
SP
SP
1+/1-
Two-channel speakON output
SP
SP
SP-Y1
CC4FP
CH(1)
CH(2)
1+/1-
2+/2-
Four-channel CA-COM output
DO
SP
DOSUB-LA8
SPK1
SPK2
SPK3
SPK4
*
For passive loudspeakers, the value corresponds to the number of enclosures in parallel on the output. For active
loudspeakers, the value corresponds to the number of sections in parallel on the output.
78 A15 owner's manual (EN) version 1.2

L-Acoustics A15 Series Specifications

General

Nominal impedance	8 ohms
Frequency Response	44 Hz - 20 kHz
Maximum SPL	141 dB
Amplification	LA4X / LA8 / LA12X
Weight	33 kg
LF Transducers	1 x 15'' neodymium
HF Transducers	1 x 3'' diaphragm compression driver
Power Handling	800 W
Connectors	2 x 4-point speakON
