L-Acoustics A15 Series User Manual

Rigging procedures

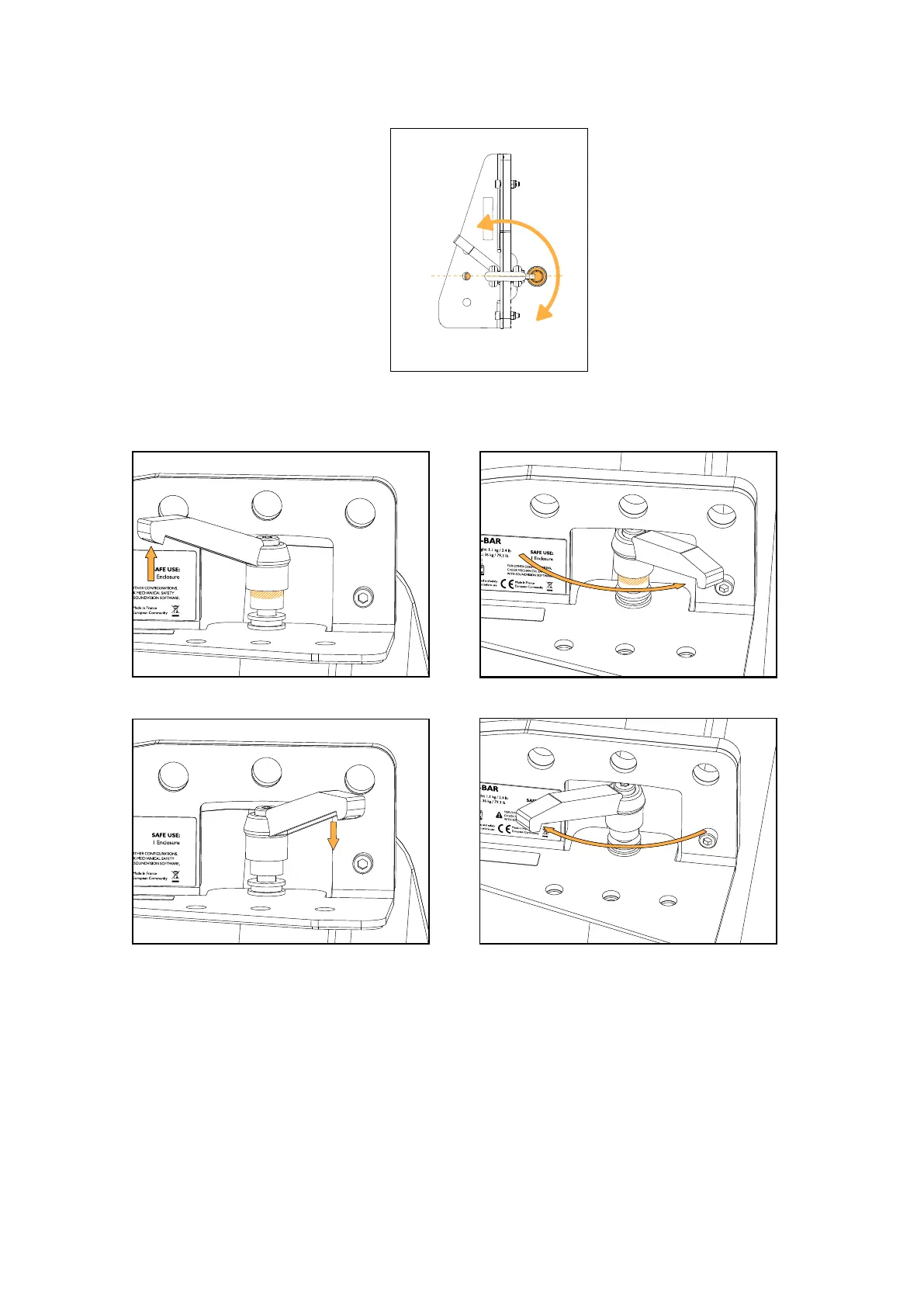

2. Rotate the X-BAR until perpendicular to the front grill.
Use the lodgings as reference points.
3. Tighten the X-BAR.
a) Lift the lever and rotate it counter-clockwise, release the lever and rotate it clockwise.
Repeat until the X-BAR is tightly secured.
A15 owner's manual (EN) version 1.2 65

L-Acoustics A15 Series Specifications

General

Nominal impedance	8 ohms
Frequency Response	44 Hz - 20 kHz
Maximum SPL	141 dB
Amplification	LA4X / LA8 / LA12X
Weight	33 kg
LF Transducers	1 x 15'' neodymium
HF Transducers	1 x 3'' diaphragm compression driver
Power Handling	800 W
Connectors	2 x 4-point speakON
