L-Acoustics A15 Series User Manual

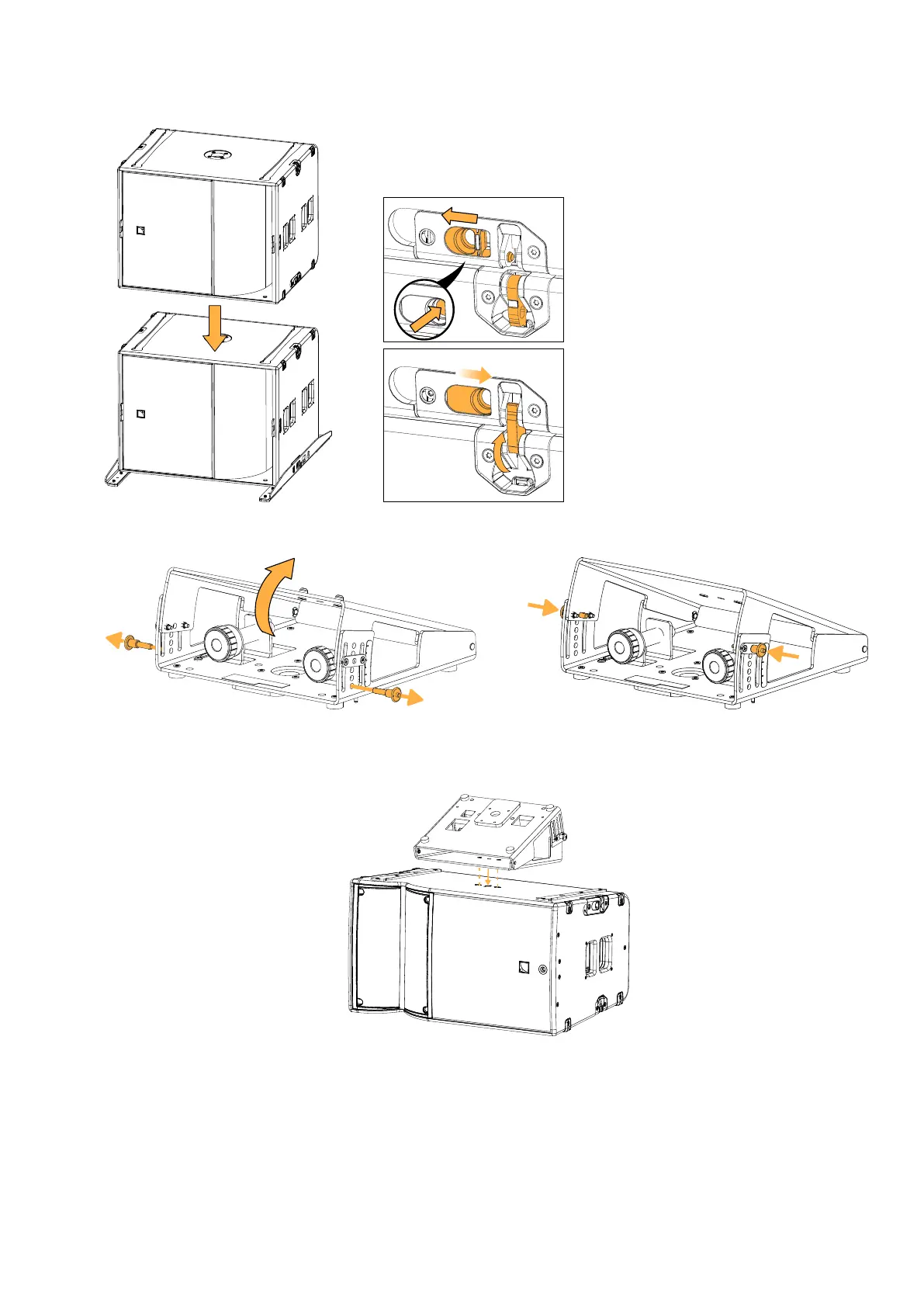

Rigging procedures
2. Secure additional KS21 on top.
Connect each enclosure on both sides before adding the new one.
SHLAK!
3. Select the widest opening position on A-TILT (25°).
4. Place A-TILT on A15 Wide/Focus, using the lodgings for indexation.
Consider the nal position of the enclosure.
68 A15 owner's manual (EN) version 1.2

L-Acoustics A15 Series Specifications

General

Nominal impedance	8 ohms
Frequency Response	44 Hz - 20 kHz
Maximum SPL	141 dB
Amplification	LA4X / LA8 / LA12X
Weight	33 kg
LF Transducers	1 x 15'' neodymium
HF Transducers	1 x 3'' diaphragm compression driver
Power Handling	800 W
Connectors	2 x 4-point speakON
