L-Acoustics A15 Series User Manual

Rigging procedures

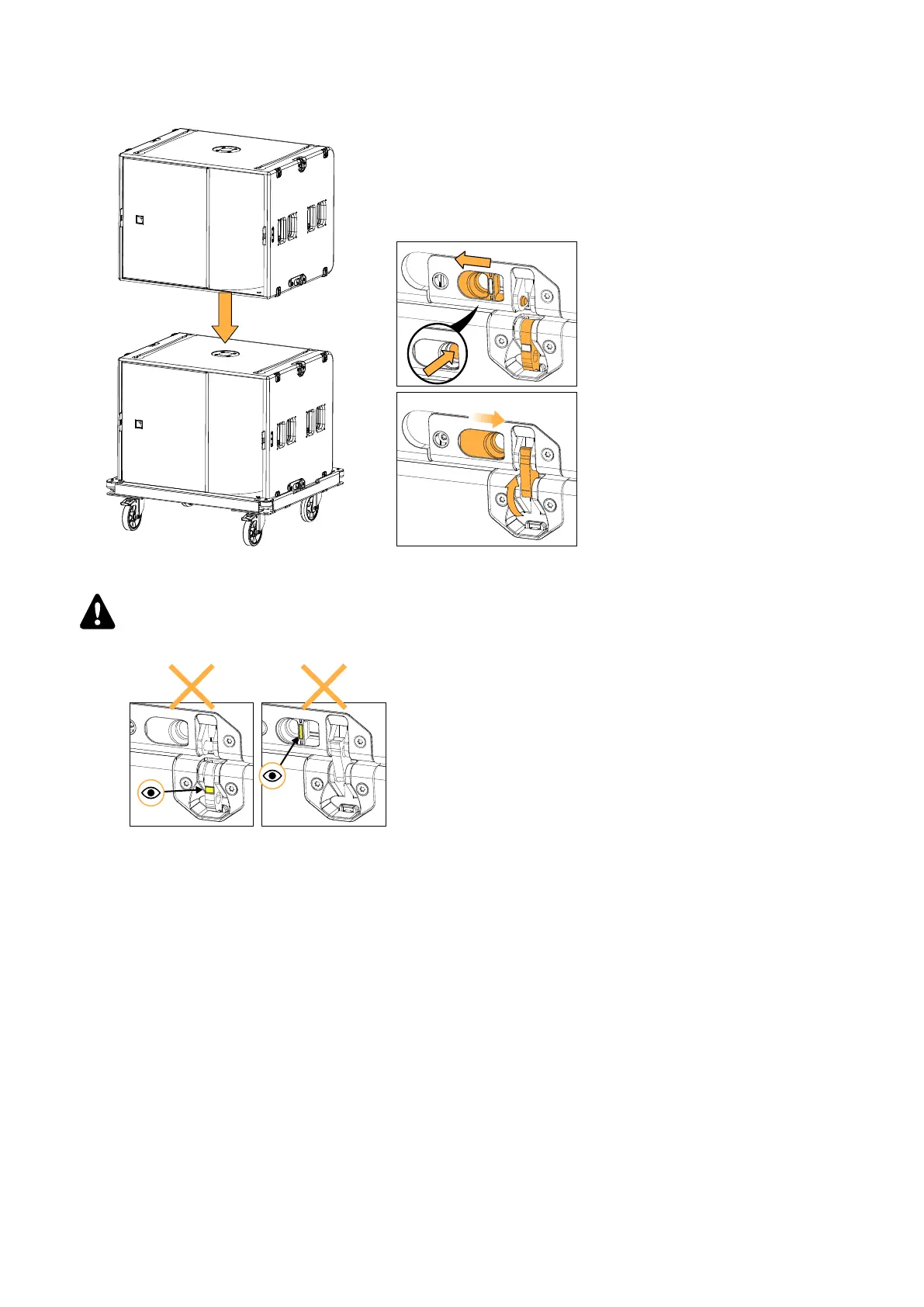

3. Secure another KS21 on the assembly.
Align the runners with the tracks.
SHLAK!
4. Repeat until the stack is complete.
Final check
Visually check that no yellow labels are visible.
Manually check that all linking points are secured.
5. Disengage the brakes and position the stack at its nal position.
6. Block the stack using both brakes.
72 A15 owner's manual (EN) version 1.2

L-Acoustics A15 Series Specifications

General

Nominal impedance	8 ohms
Frequency Response	44 Hz - 20 kHz
Maximum SPL	141 dB
Amplification	LA4X / LA8 / LA12X
Weight	33 kg
LF Transducers	1 x 15'' neodymium
HF Transducers	1 x 3'' diaphragm compression driver
Power Handling	800 W
Connectors	2 x 4-point speakON
