L-Acoustics K2 - Page 101

Rigging procedures

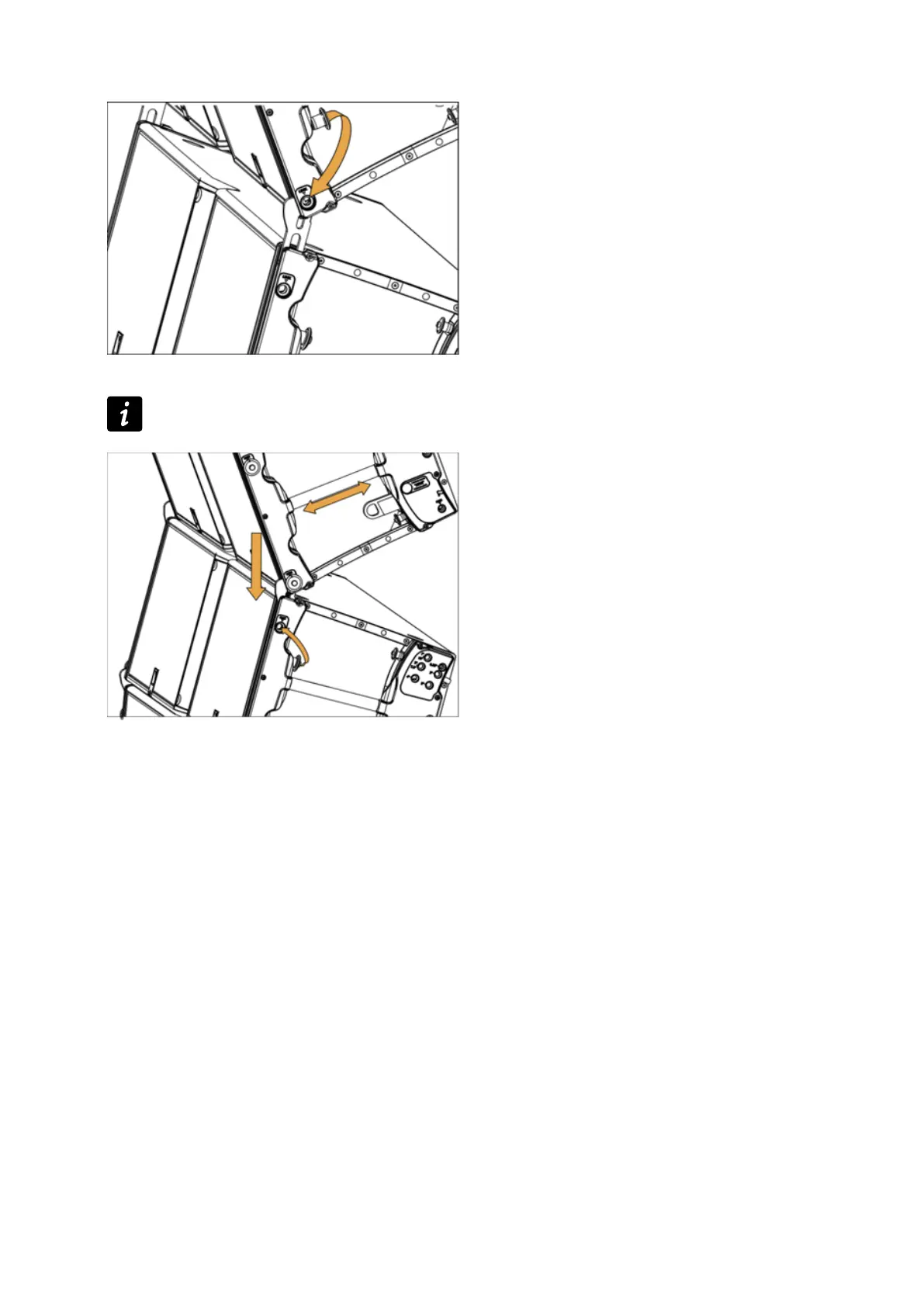

b) Pin the arm in the LINK hole of the own array.
c) Lower the own array and secure the assembly with the LINK pin.
If you cannot insert the pin, move the own array back and forth with enclosure handle.
K2 owner's manual (EN) version 1.1 101
