Rigging system description
Elements for storage and transportation
K2-CHARIOT

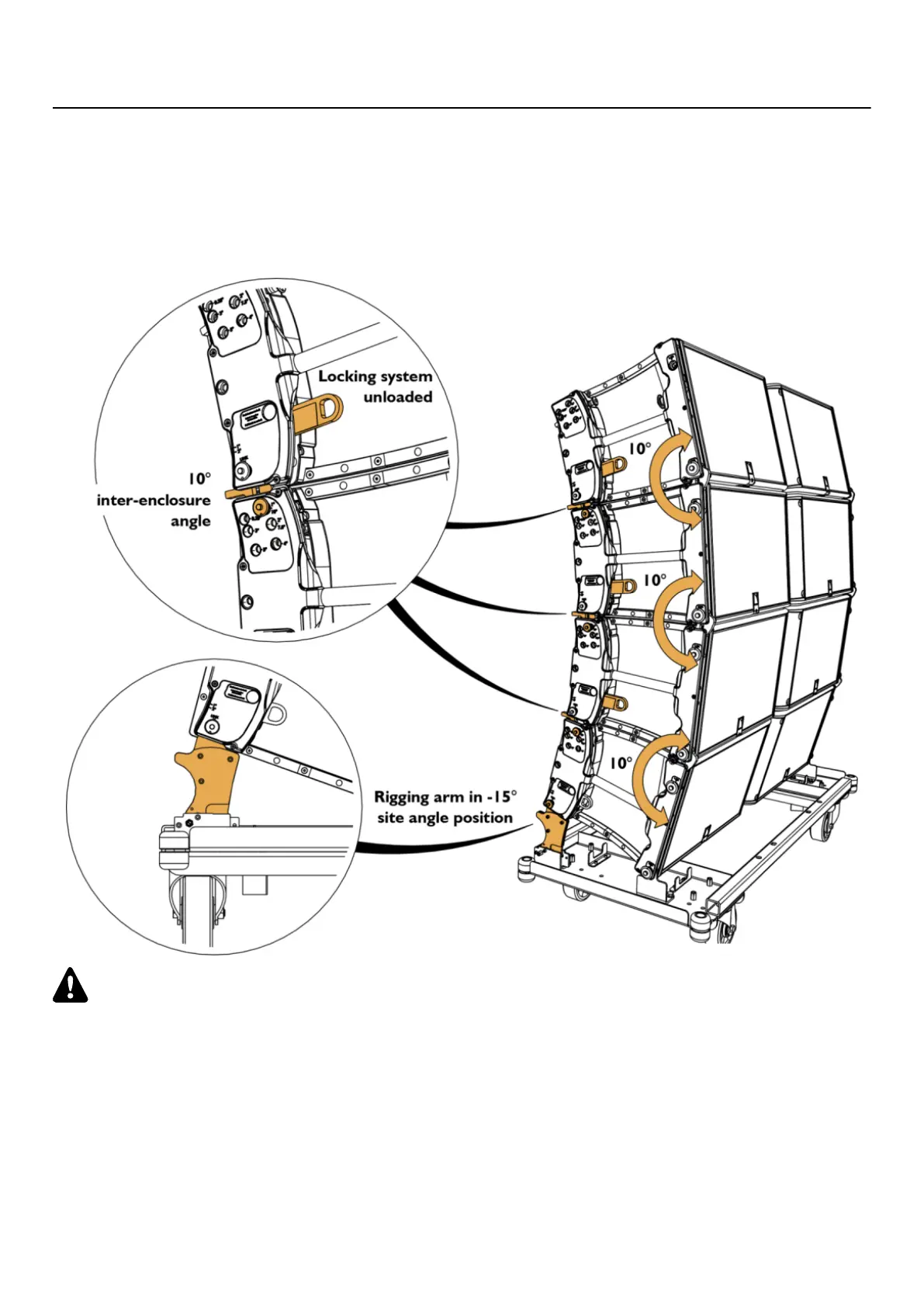

K2-CHARIOT is designed for the transportation and storage of blocks of four K2 enclosures.
During transportation the blocks must have an inter-enclosure angle of 10° to avoid any separation of the enclosures. This
angle must be set using the enclosure rear rigging arm pin. The automatic locking system must remain unloaded.
The K2-CHARIOT rear rigging arm must be at its -15° site angle position.
Tipping hazard
If the enclosures are not pinned at 10
o
, they can separate at the back and cause the stack to tip over.
20 K2 owner's manual (EN) version 1.1
