Electro-acoustical description
Connectors
SpeakON connectors can be used interchangeably as IN or LINK connector.
IN
LINK
K2
2 × 8-point PA-COM

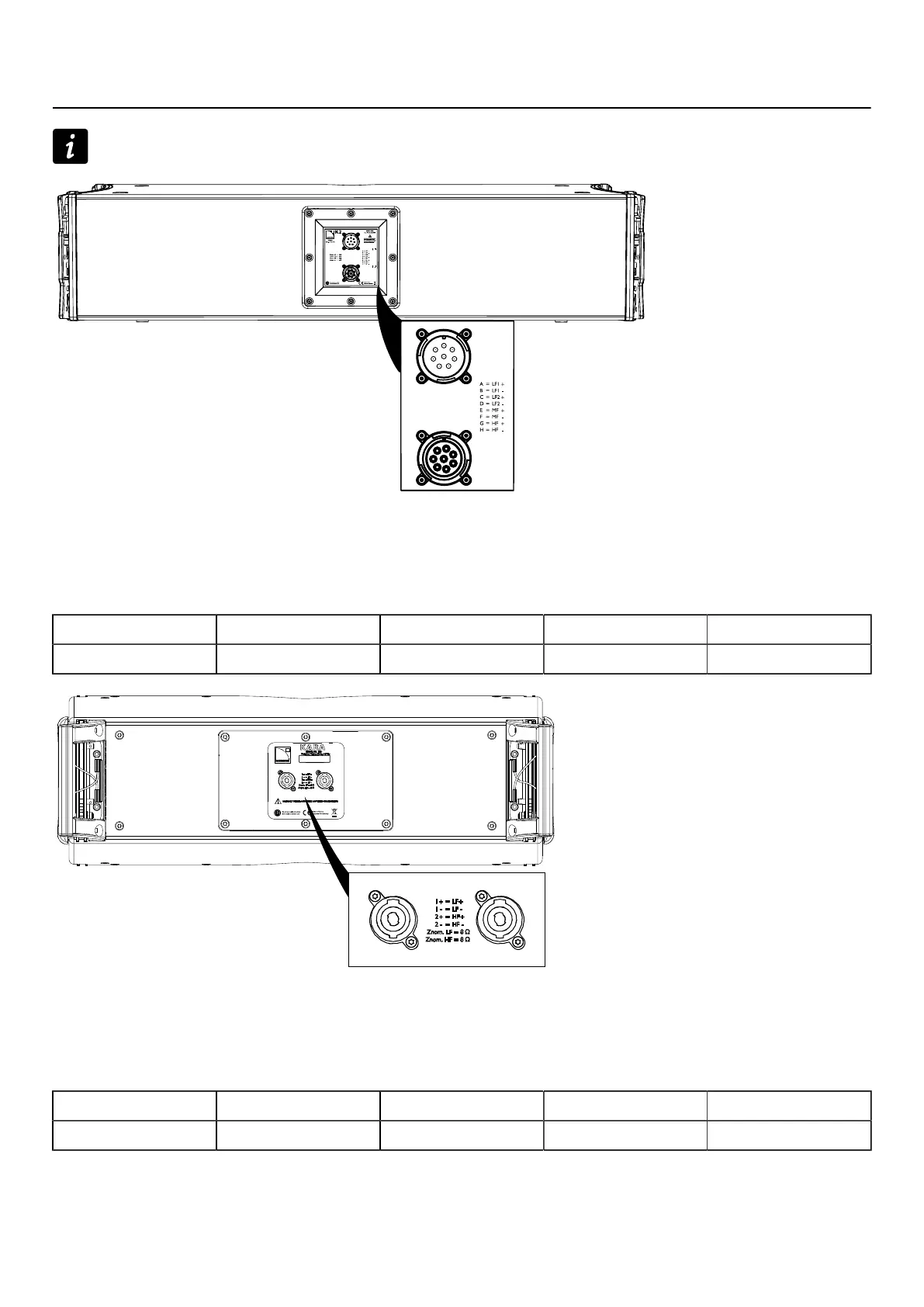

Internal pinout for L-Acoustics 3-way active enclosures
PA-COM points A/B C/D E/F G/H
Transducer connectors left LF right LF MF HF
Kara
2 × 4-point speakON
Internal pinout for L-Acoustics 2-way active enclosures
speakON points 1 + 1 - 2 + 2 -
Transducer connectors LF + LF - HF + HF -
K2 owner's manual (EN) version 1.1 17
