L-Acoustics K2 - Elements for Ying

Rigging system description
Elements for ying

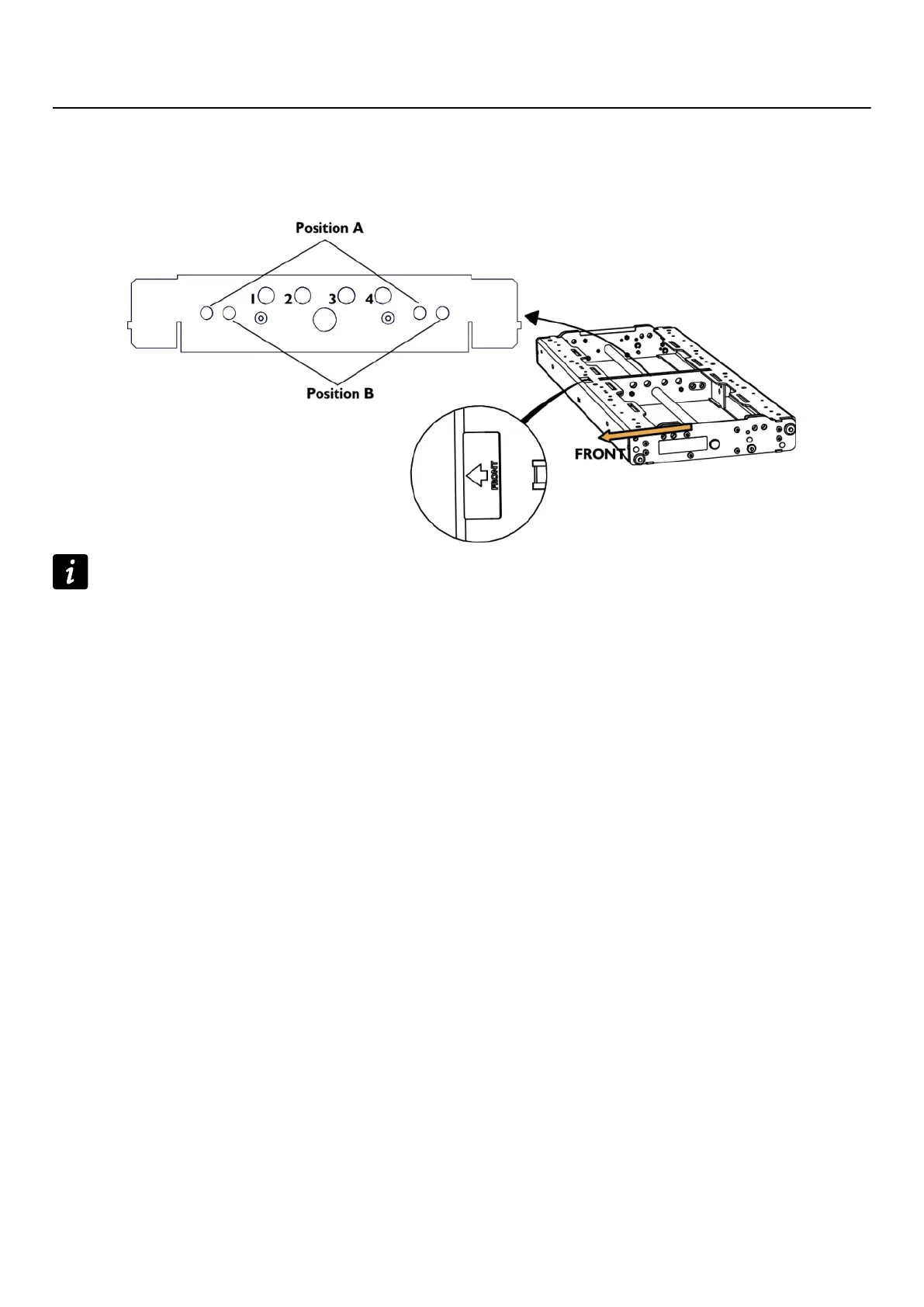

K2-BUMP
K2-BUMP is designed for ying line arrays of K2, K1 or K1-SB. 4 holes are available on the central bar of the K2-BUMP.
Refer to your Soundvision model to know which holes to use.
With K1-SB and a single motor the hole n
o
2 provides a 0
o
site angle.
22 K2 owner's manual (EN) version 1.1
