Rigging system description
K2-BAR to K2-BUMP

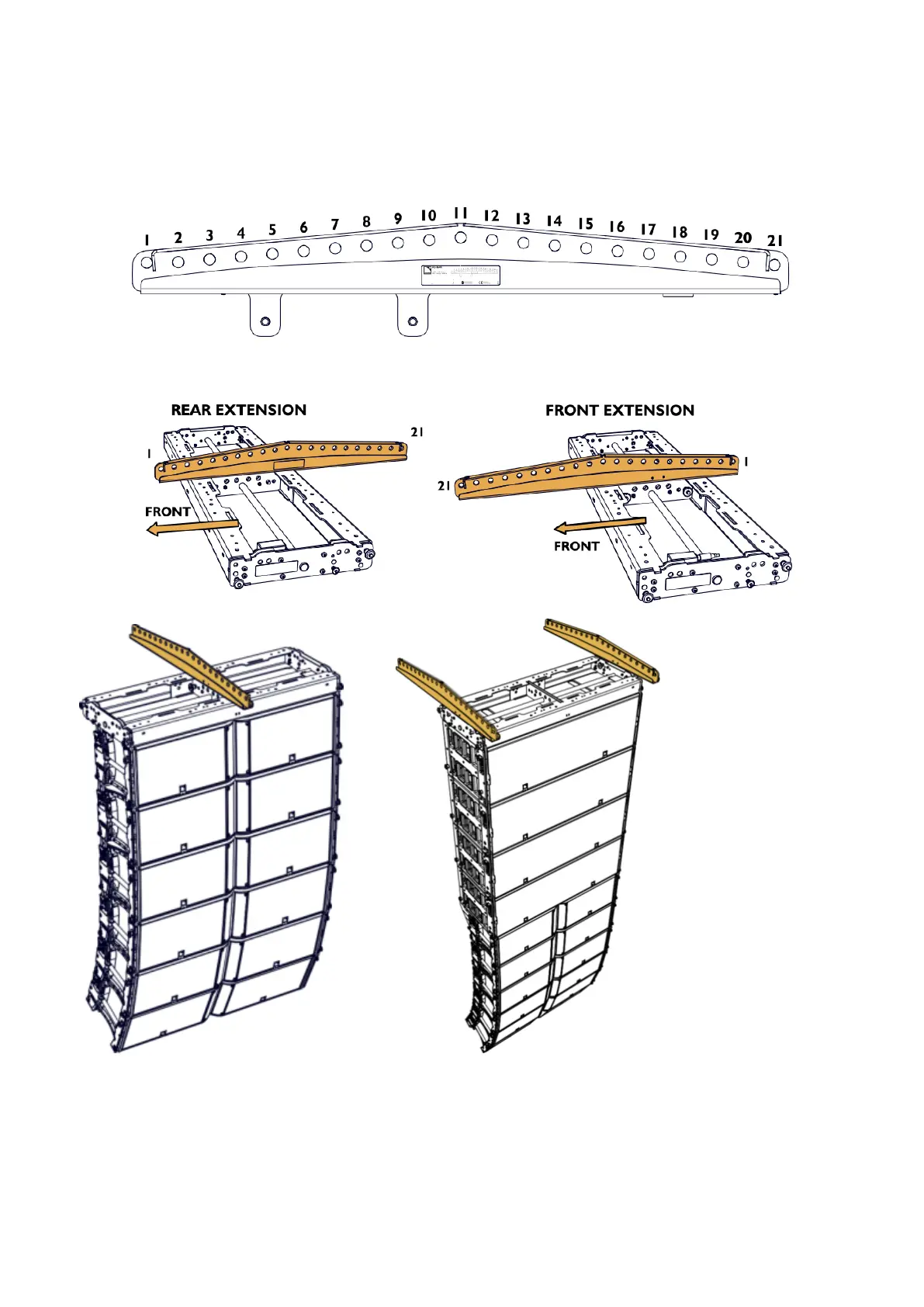

By adding a K2-BAR to the K2-BUMP, the site angle range can be increased. 21 holes are available on the K2-BAR
which can be attached to the K2-BUMP as a rear or a front extension and in position A or B, thus offering a total of 84
discrete positions for pick-up points.
The rear extension is suited to downwards and front extension to upwards site angles.
Standard: One K2-BAR attached
in the center of K2-BUMP
Alternative: Two K2-
BAR attached on the sides
K2 owner's manual (EN) version 1.1 23
