Rigging procedures
L - Attaching K1 or K1-SB under K2-BUMP
Procedure

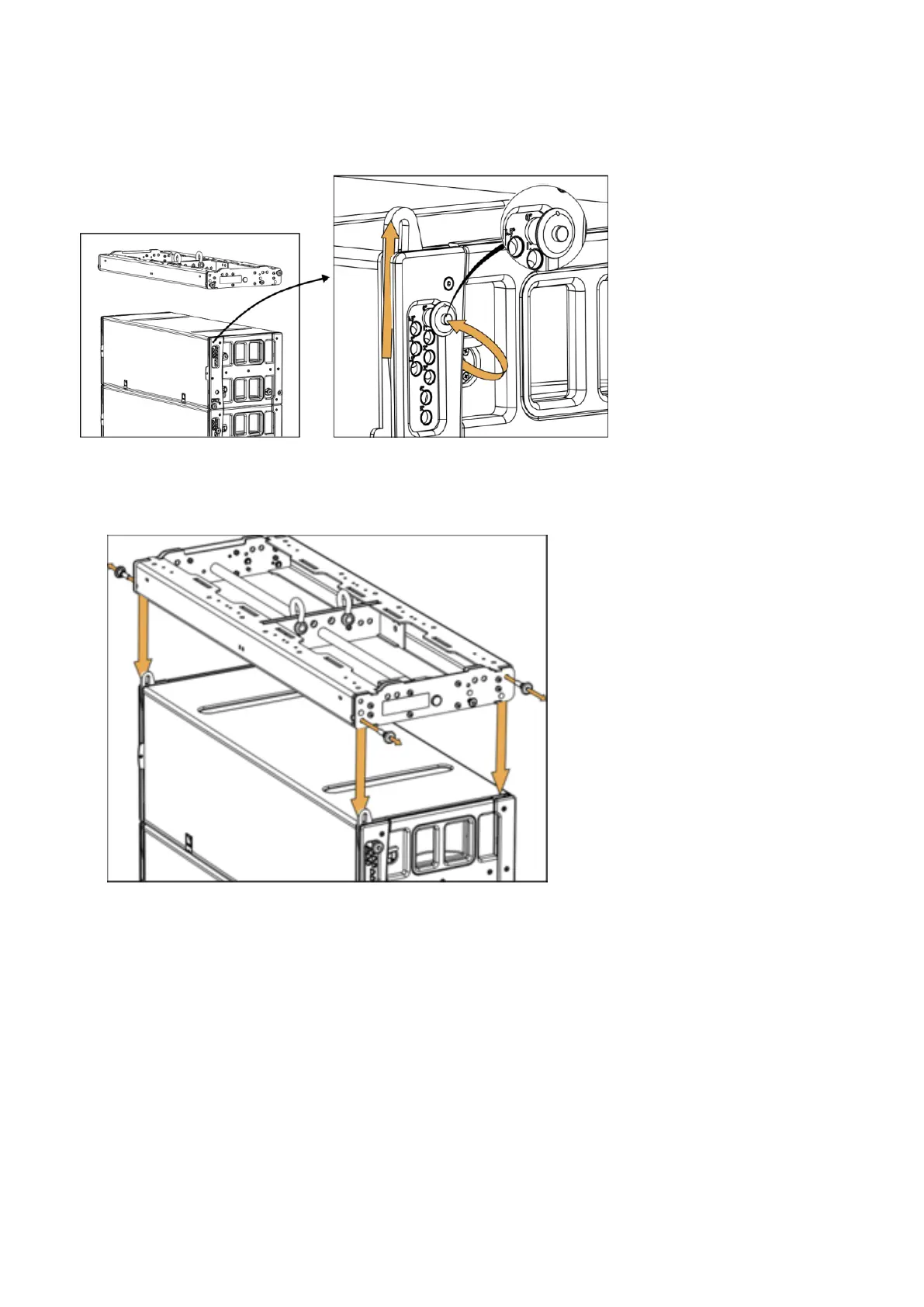

1. Slide out K1-SB front rigging arm and pin it at 0° on both sides.
2. Attach the K2-BUMP to the K1 elements block:
a) Remove the K2-BUMP rear and front pins on both sides.
Lower the K2-BUMP so it rests on the topmost enclosure.
K2 owner's manual (EN) version 1.1 113
