L-Acoustics K2 User Manual

Rigging procedures

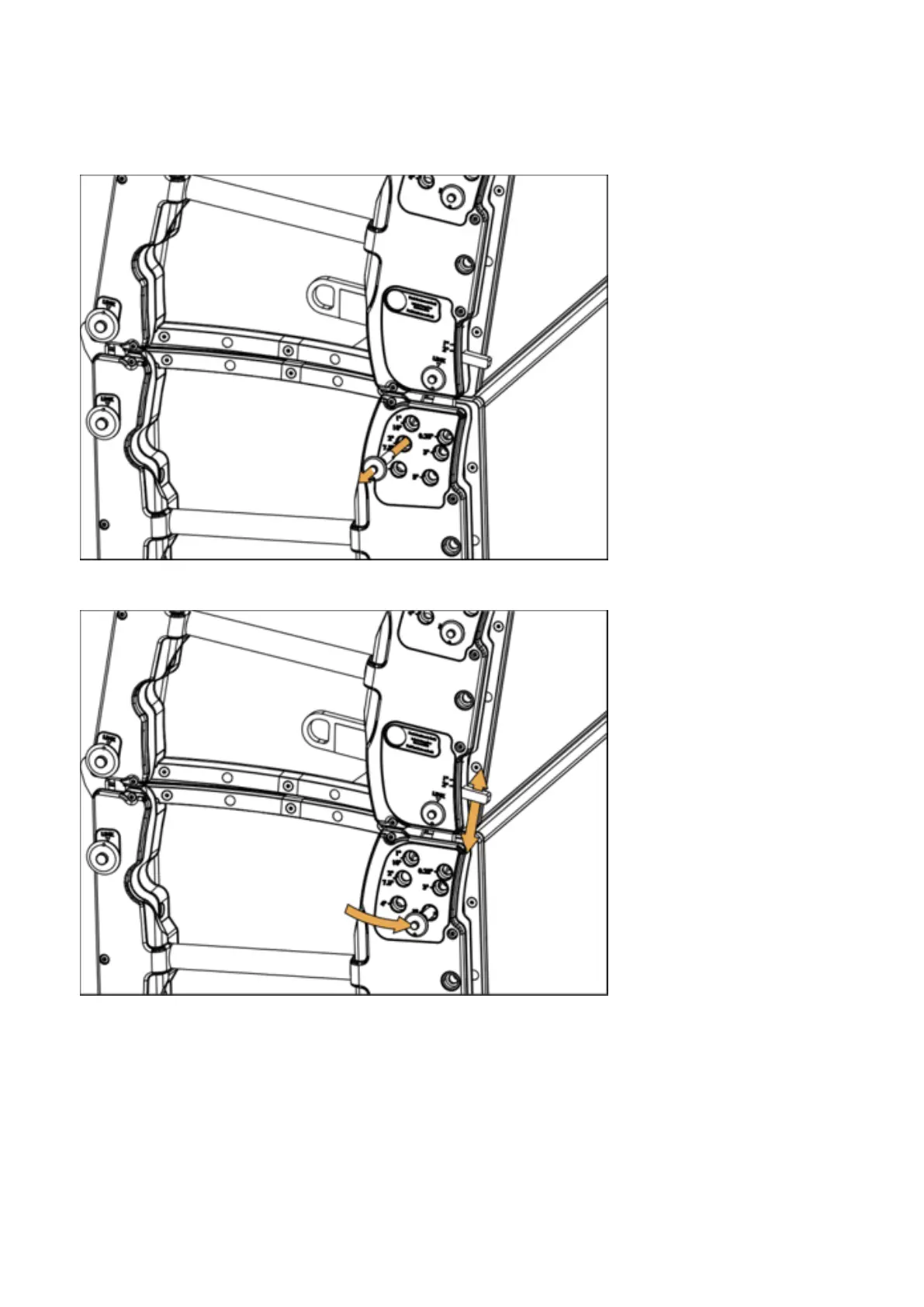

B - Preset the inter-enclosure angles
Procedure
1. On both sides, remove the pin from its current angle hole.
2. Position the pin at the chosen angle hole and slide the rigging arm until the pin goes in.
K2 owner's manual (EN) version 1.1 73

L-Acoustics K2 Specifications

General

Frequency Response	35 Hz - 20 kHz
Max SPL	147 dB
Transducers	2 x 12" LF, 4 x 6.5" MF, 2 x 3" HF
Nominal Impedance	8 ohms
Amplification	LA8 / LA12X
Weight	56 kg
Type	3-way active WST line source
Components	12" LF, 6.5" MF, 3" HF
Connectors	2 x 4-point speakON
