L-Acoustics K2 User Manual

Pickup points guidelines
Pickup points guidelines
A K2 system can be lifted using one or two motors:
• One or two motors with K2-BUMP alone.
• Two motors with K2-BUMP and one K2-BAR.
• Two with K2-BUMP and two K2-BAR.

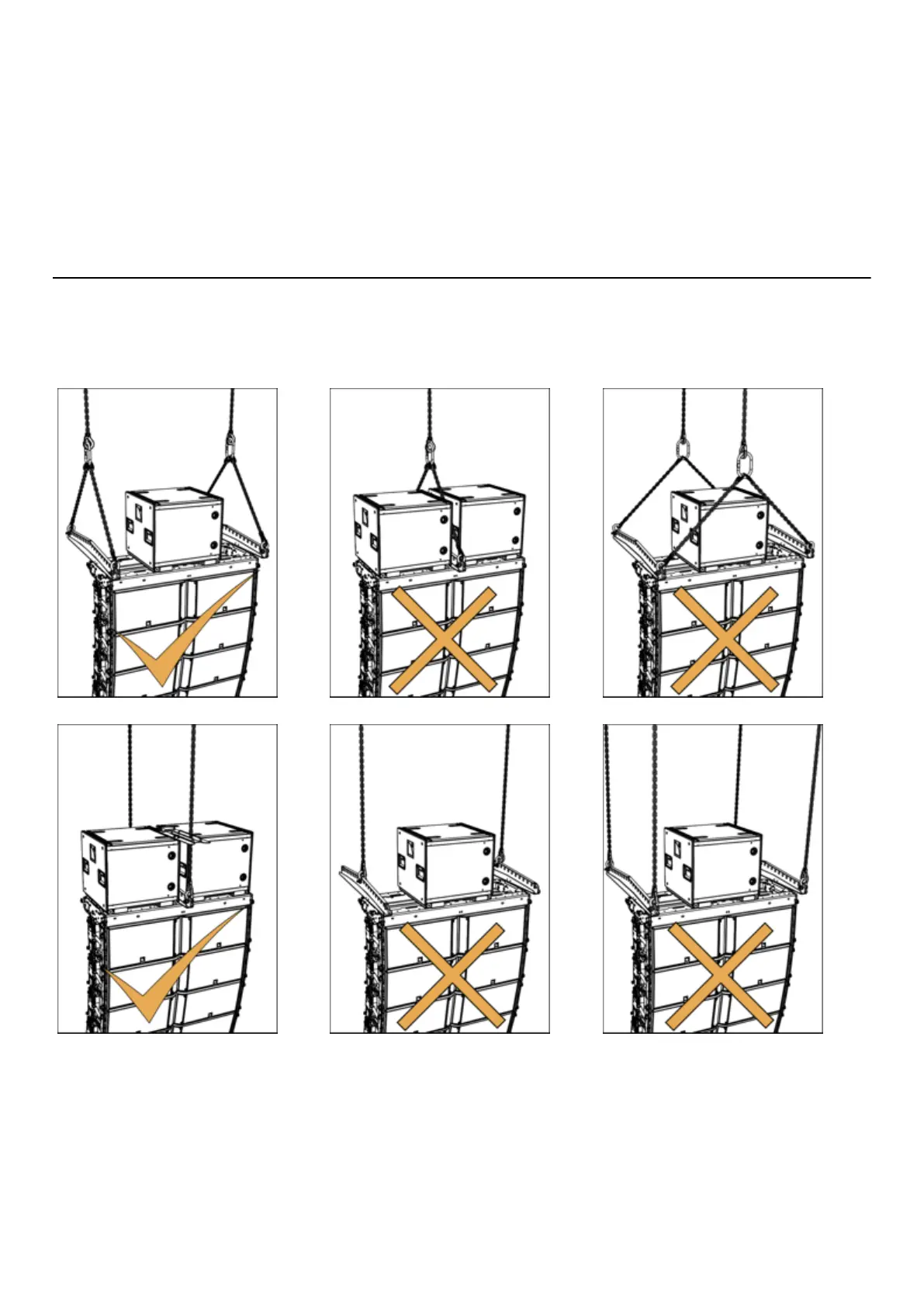

K2-BUMP with LA-RAK/LA-RAK II
With a single LA-RAK/LA-RAK II on top of a K2-BUMP, always implement a bridle suspension using two LA-SLING2T.
With two LA-RAK/LA-RAK II on top of a K2-BUMP, always use the K2-RAKMOUNT stabilizer.
OK Not OK
Use two LA-SLING2T to implement bridle hangs.
One leg of the LA-SLING2T must always be connected to the K2-BAR hole no 1 (i.e., the closest to the array). The other
leg can be connected to holes no 11 to n o 21.
K2 owner's manual (EN) version 1.1 181

L-Acoustics K2 Specifications

General

Frequency Response	35 Hz - 20 kHz
Max SPL	147 dB
Transducers	2 x 12" LF, 4 x 6.5" MF, 2 x 3" HF
Nominal Impedance	8 ohms
Amplification	LA8 / LA12X
Weight	56 kg
Type	3-way active WST line source
Components	12" LF, 6.5" MF, 3" HF
Connectors	2 x 4-point speakON
