Rigging procedures

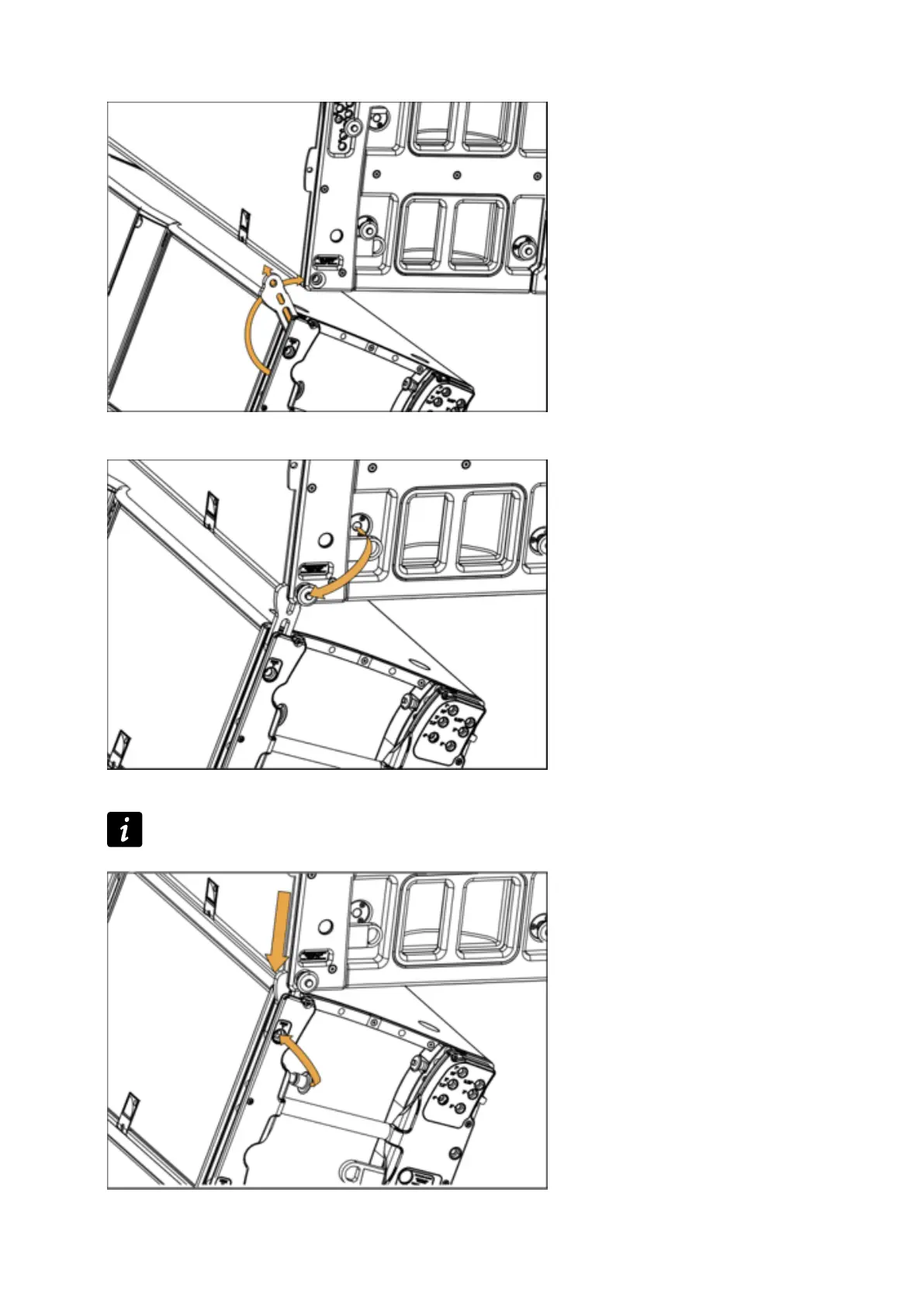

a) Rotate the arm to align its hole with the K1/K1-SB rigging hole.
b) Pin the arm on the own array.
c) Lower the own array and secure the assembly with the LINK pin.
If you cannot insert the pin, move the own array back and forth with enclosure handle.
