L-Acoustics K2 - Page 109

Rigging procedures

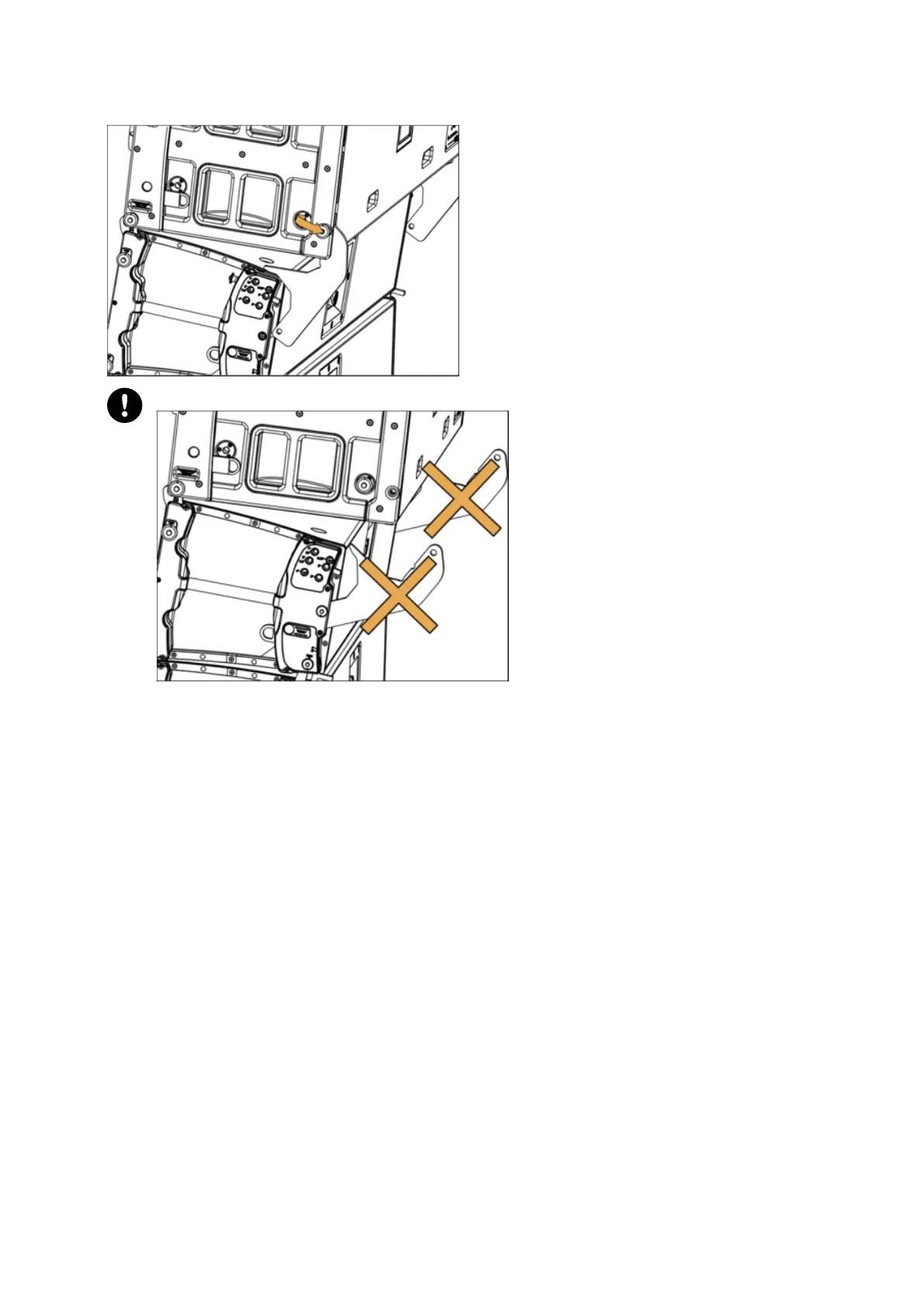

4. Connect the rear of the K1/K1-SB array to the rear of the K2 array with the K2-LINK interfaces:
a) On both sides, attach a K2-LINK at the back of the K1-SB enclosure.
Do not pin K2-LINK on K2.
K2 owner's manual (EN) version 1.1 109
