Corrective maintenance
Reassembly
Procedure

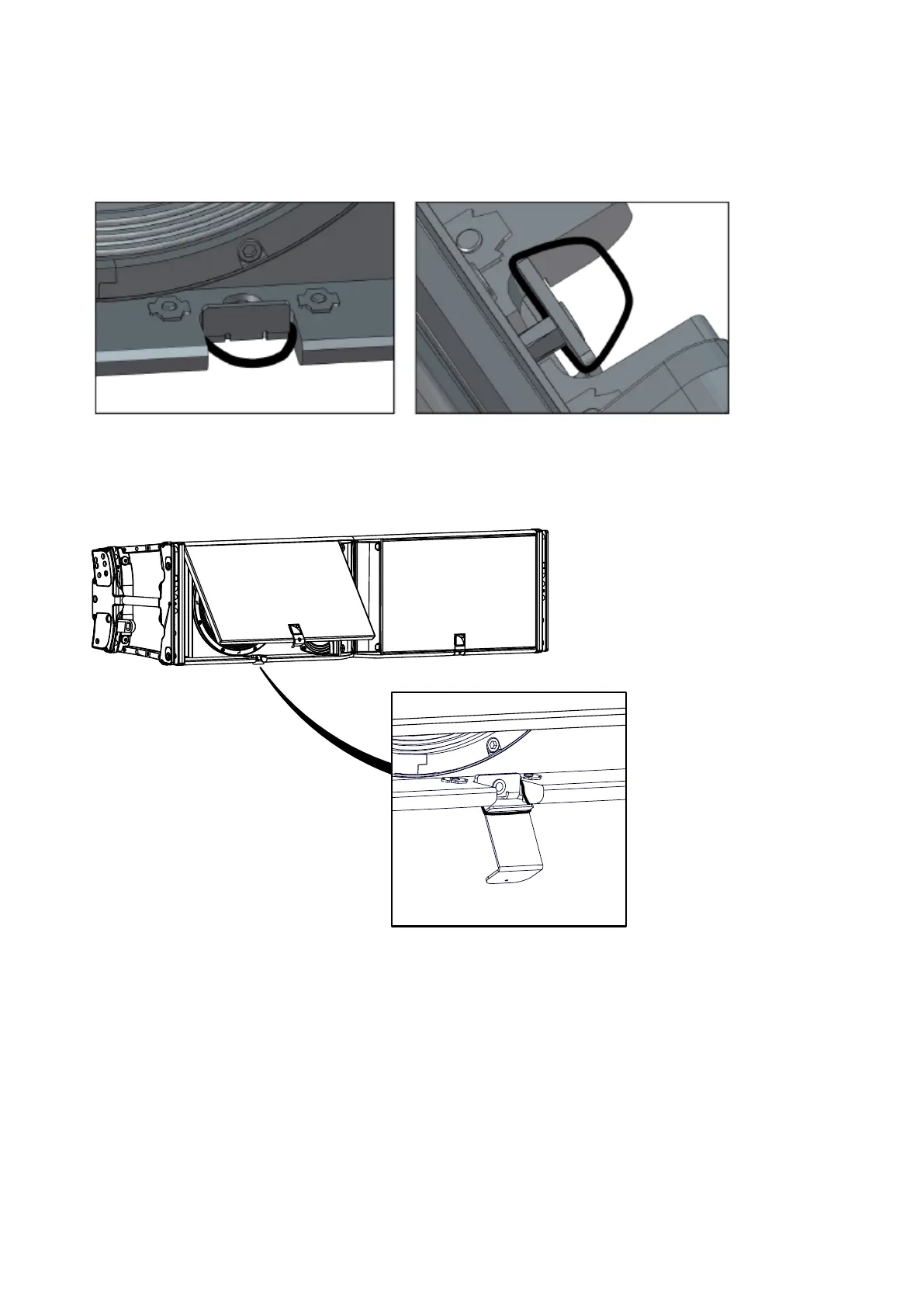

1. Slide the O-ring under the captive screw insert.
Use a at-head screwdriver to push the O-ring under the insert.
2. Apply blue threadlocker on the grill screw.
3. Insert the top of the grill.
Stretch the O-ring with the tool provided in the KR.
134 K2 owner's manual (EN) version 1.1
