Corrective maintenance
D/R - LF SPEAKER
Tools
• torque screwdriver
• 5 mm hex bit
Repair kit
KR HPBM181
Kit HP BM181 Speaker 18"
×8 ×8 ×8 ×1
S154 S160 S197 FT807
single coil spring washer
Ø6mm
plain washer Ø6mm M6×35 hex 18" driver - 8 ohms
Prerequisite
Grill disassembled. See GRILL (p.154).

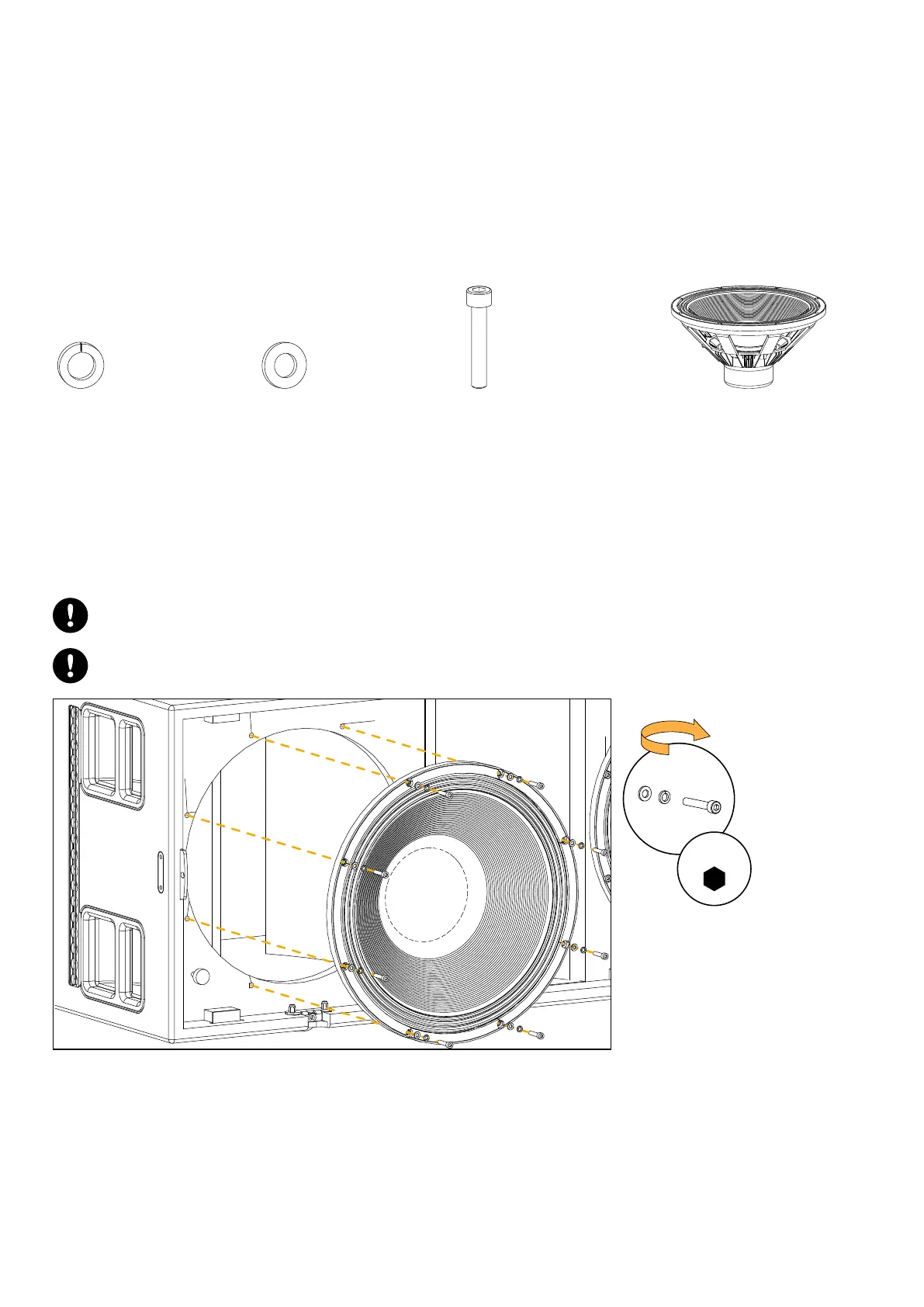

Exploded view
For safety reasons, always use the new screws and spare parts provided in the KR.
Gradually tighten the screws following a star pattern.
x8
5 N.m
5 mm
K2 owner's manual (EN) version 1.1 155
