Installing a laser inclinometer
K2-LASERMOUNT
The L-ACOUSTICS
®
K2-LASERMOUNT is a support plate designed to attach a remote laser inclinometer to the side of
a K2 enclosure. It is compatible with ve sensor models: TEQSAS
®
LAP-TEQ PLUS (part of the L-ACOUSTICS
®
TECH
TOOLCASE, refer to spec sheet), TEQSAS
®
LAP-TEQ (legacy model), KSG
®
RECLINE Compact, ALIGNARRAY
®
UVM,
and SSE
®
ProSight.
Procedure
1. Mount the inclinometer on the K2-LASERMOUNT.

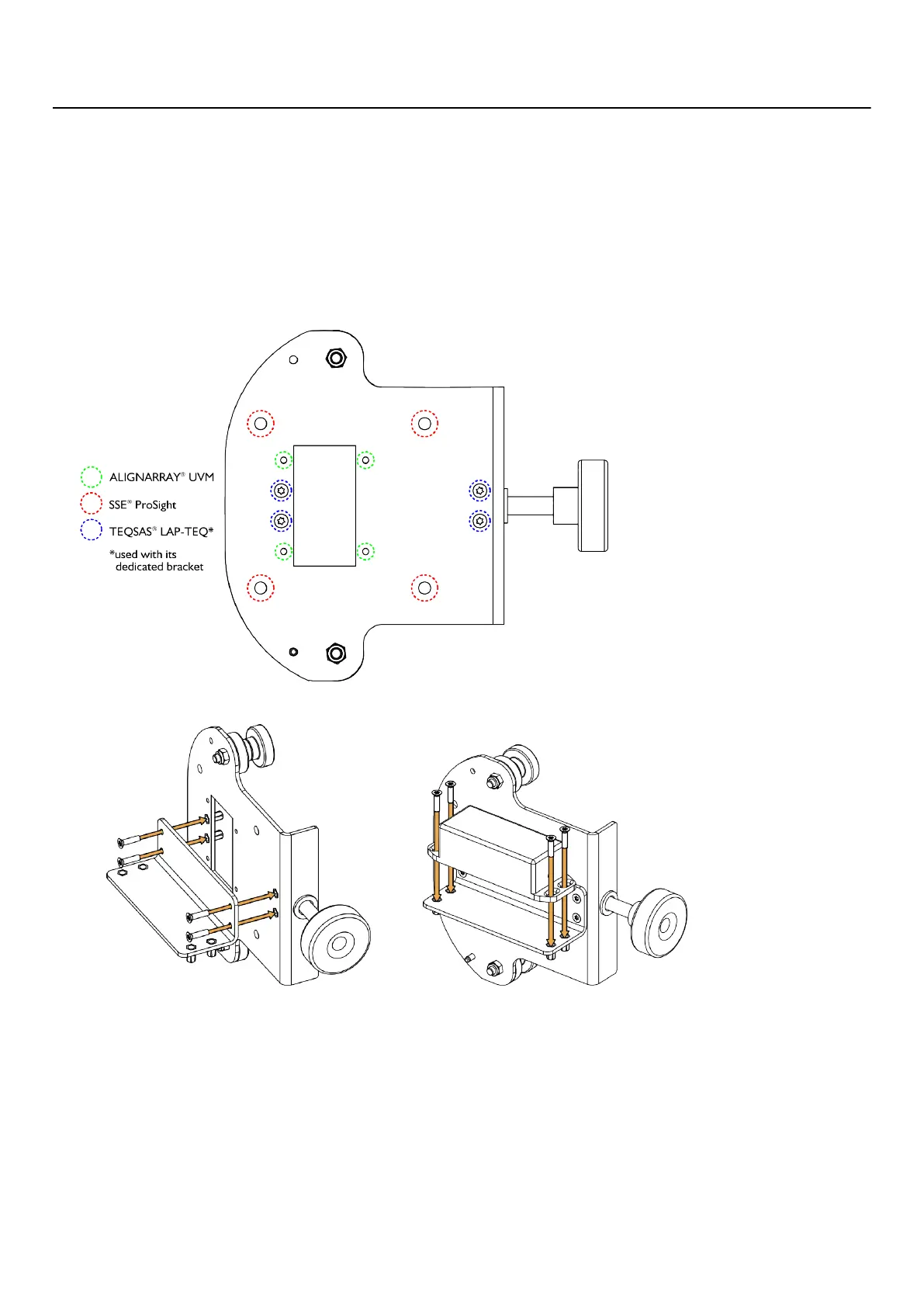

Refer to the gure below for the position of the screws on the support plate for each model.
Use thread-locker on each screw.
To mount the LAP-TEQ PLUS / LAP-TEQ / RECLINE use the bracket delivered with the inclinometer.
