Rigging system description

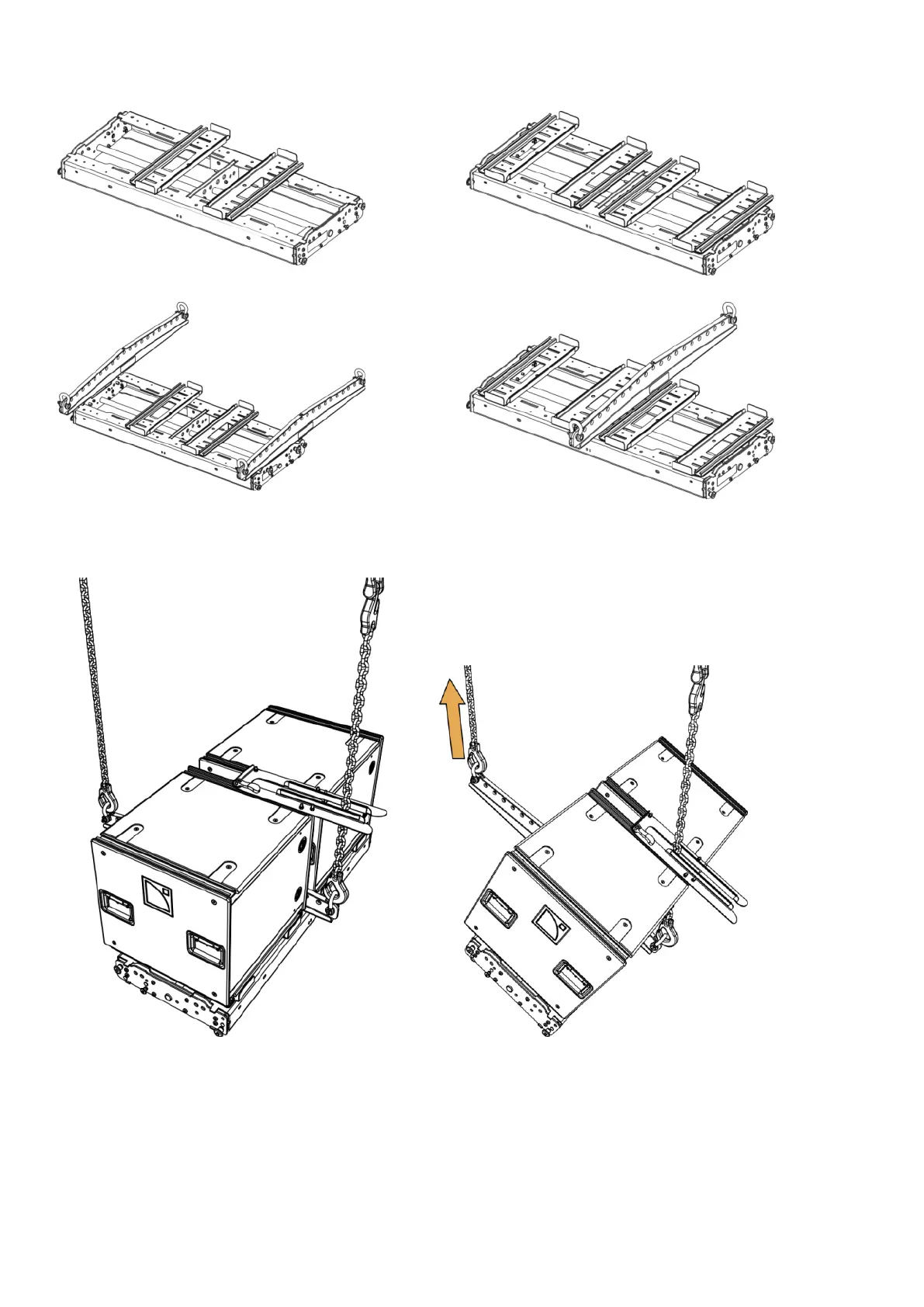

1 LA-RAK/LA-RAK II : 2 rails : 2 K2-BAR 2 LA-RAK/LA-RAK II : 4 rails : 1 K2-BAR
When two racks are mounted side by side, the stabilizer is used to prevent the assembly from tipping or toppling over.
The stabilizer traps one of the chains used to lift the assembly.
0
o
site angle 30
o
positive site angle
K2 owner's manual (EN) version 1.1 27
