Inspection and preventive maintenance

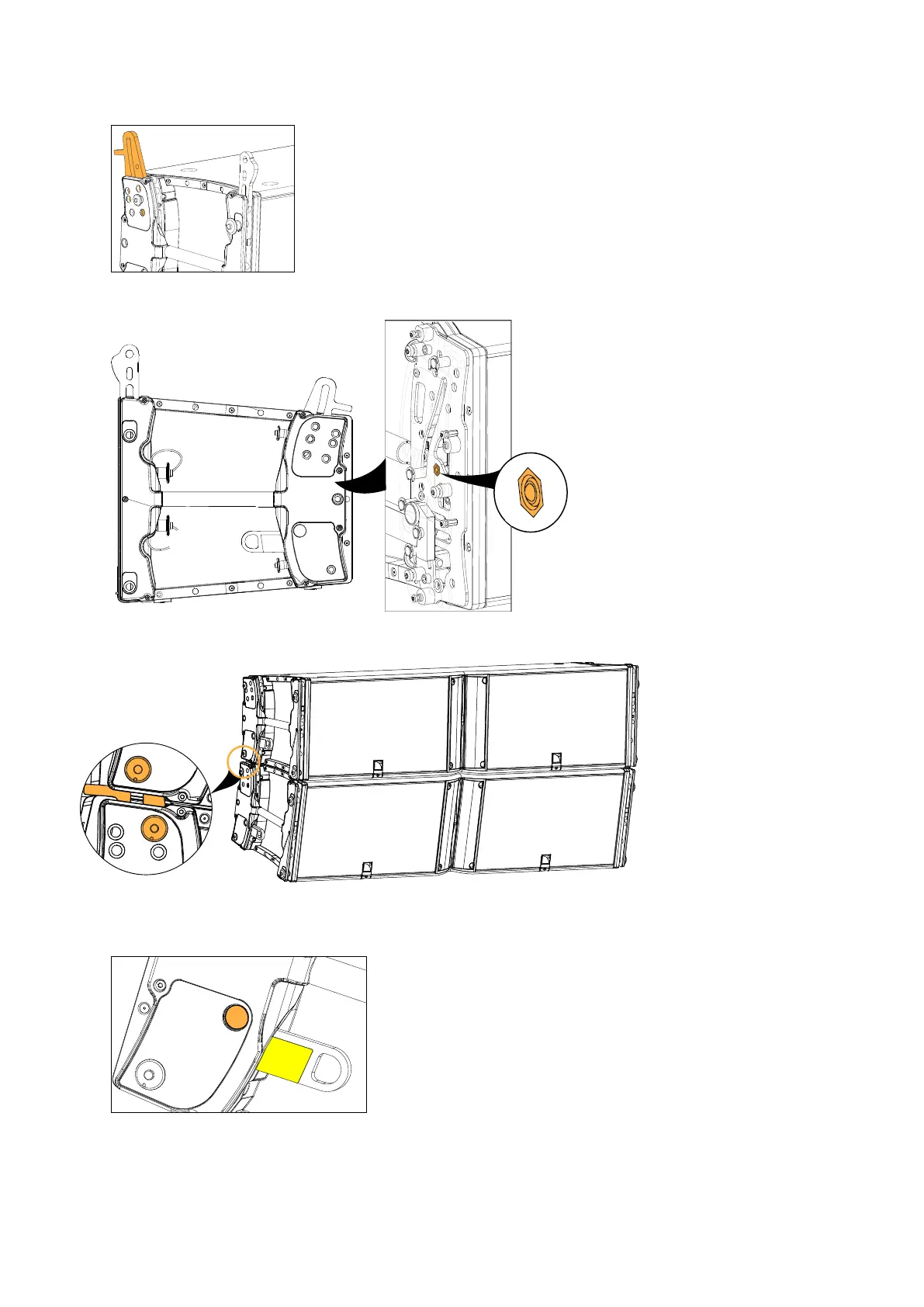

3. Secure the rear rigging arms at the LINK holes.
• The rear rigging arms can be deployed with some resistance, and slide correctly.
• The ball-type plunger protrudes out the rigging system.
4. Secure the rear rigging arms at one of the inter-enclosure holes.
5. Press the button to activate the automatic locking system.
• The latch slightly retracts when the button is pushed (yellow label visible).
K2 owner's manual (EN) version 1.1 55
