Rigging procedures

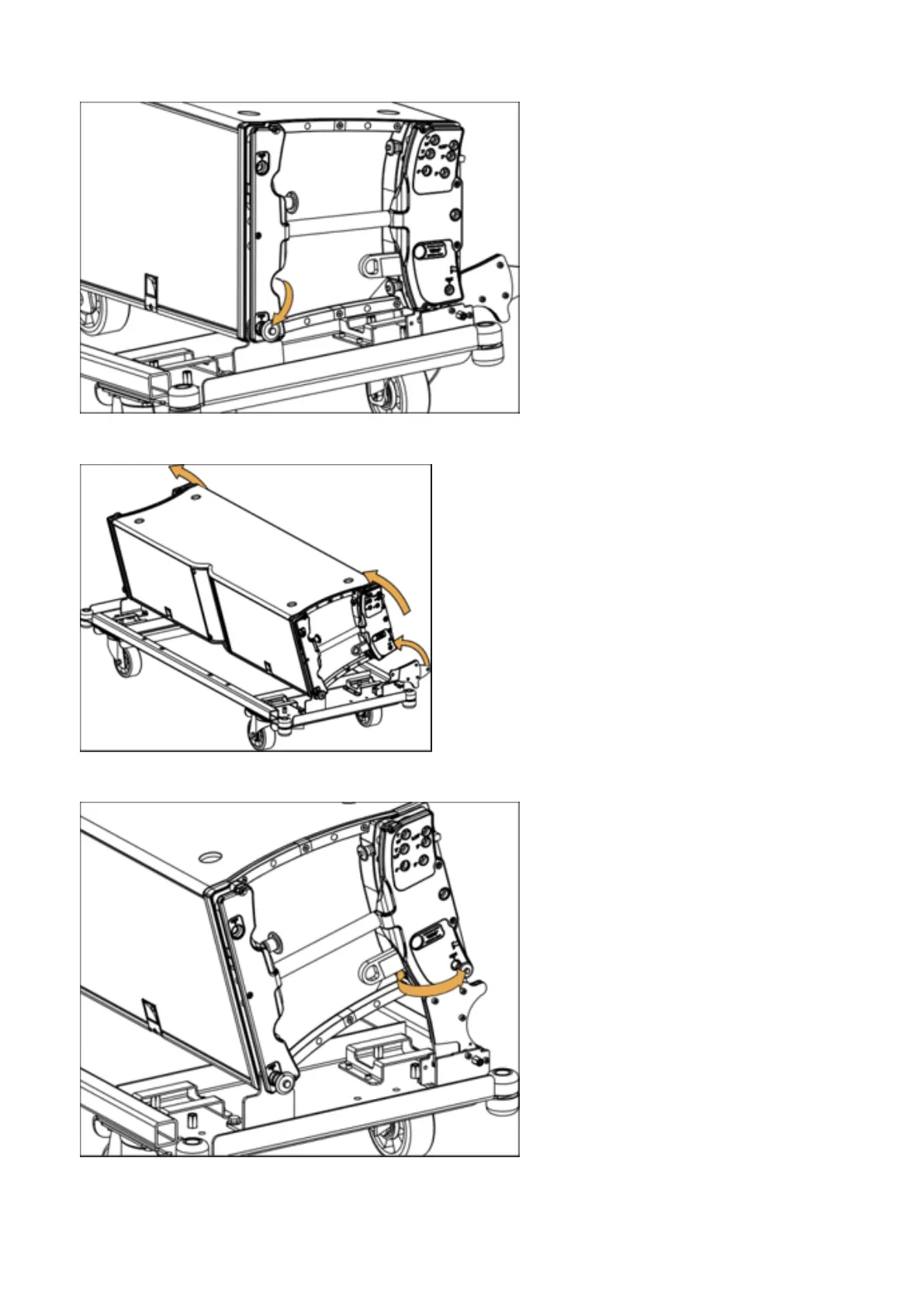

3. Secure the enclosure at the front using the LINK hole.
4. Lift the rear of the enclosure and rotate the dolly rear rigging arm in its upward position.
5. Secure the enclosure using the LINK hole.
