Rigging procedures

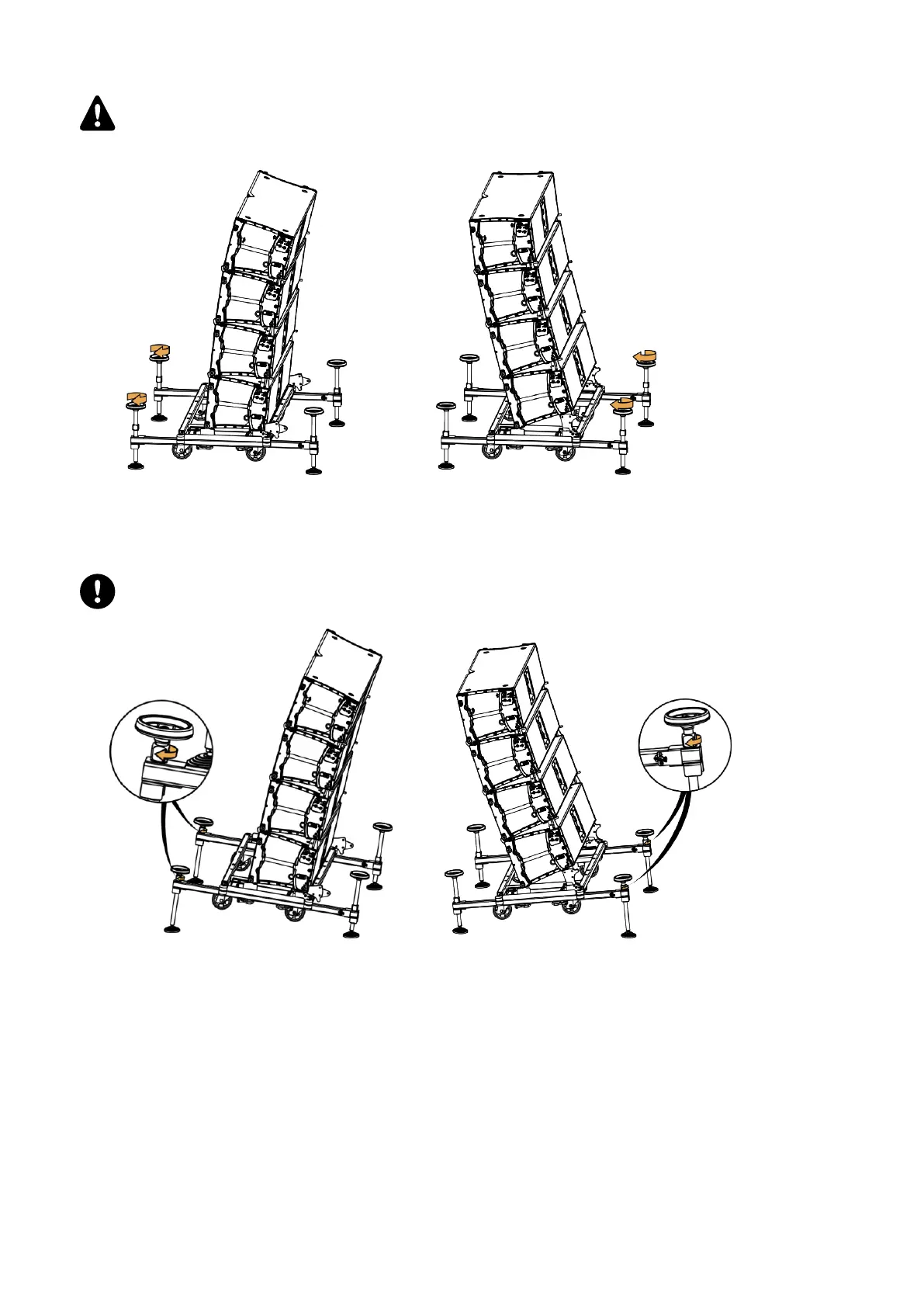

3. Adjust the site angle:
Tipping hazard
Adjust either the stabilizer at the front or at the back of the stack. Do not adjust both the front and back of the
stack.
With the front screw jacks
for a positive site angle.
With the back screw jacks
for a negative site angle.
4. Tighten the front or back bolts depending on the site angle.
Tighten the bolt by hand only.
84 K2 owner's manual (EN) version 1.1
