Rigging procedures

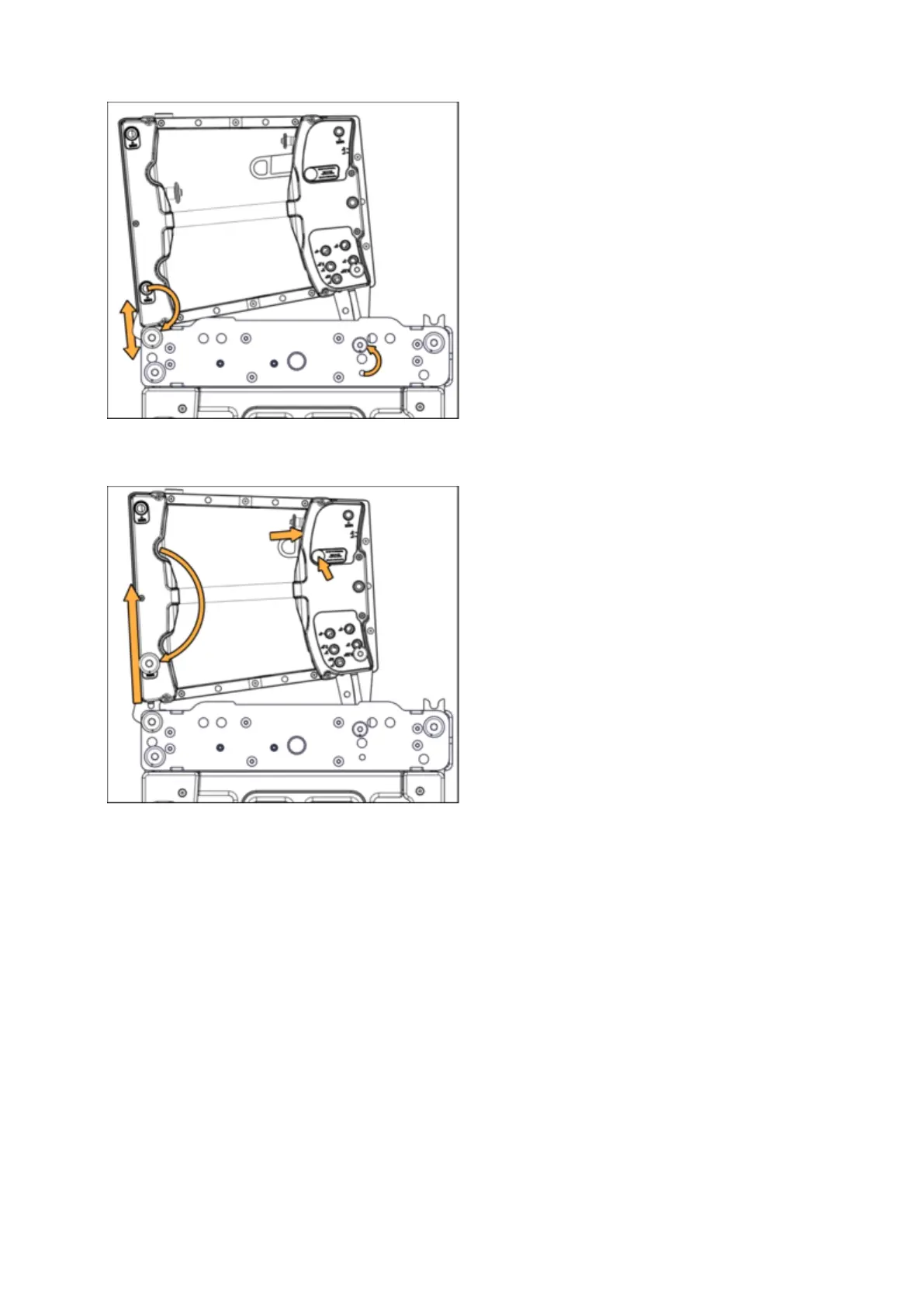

c) Slide the front arm up and down to align the holes and secure it. Attach the front arm to the K2-BUMP.
d) Raise the top enclosure to align the holes. Secure the front rigging arm. Push the locking system button to arm the
latch.
K2 owner's manual (EN) version 1.1 87
