Rigging procedures

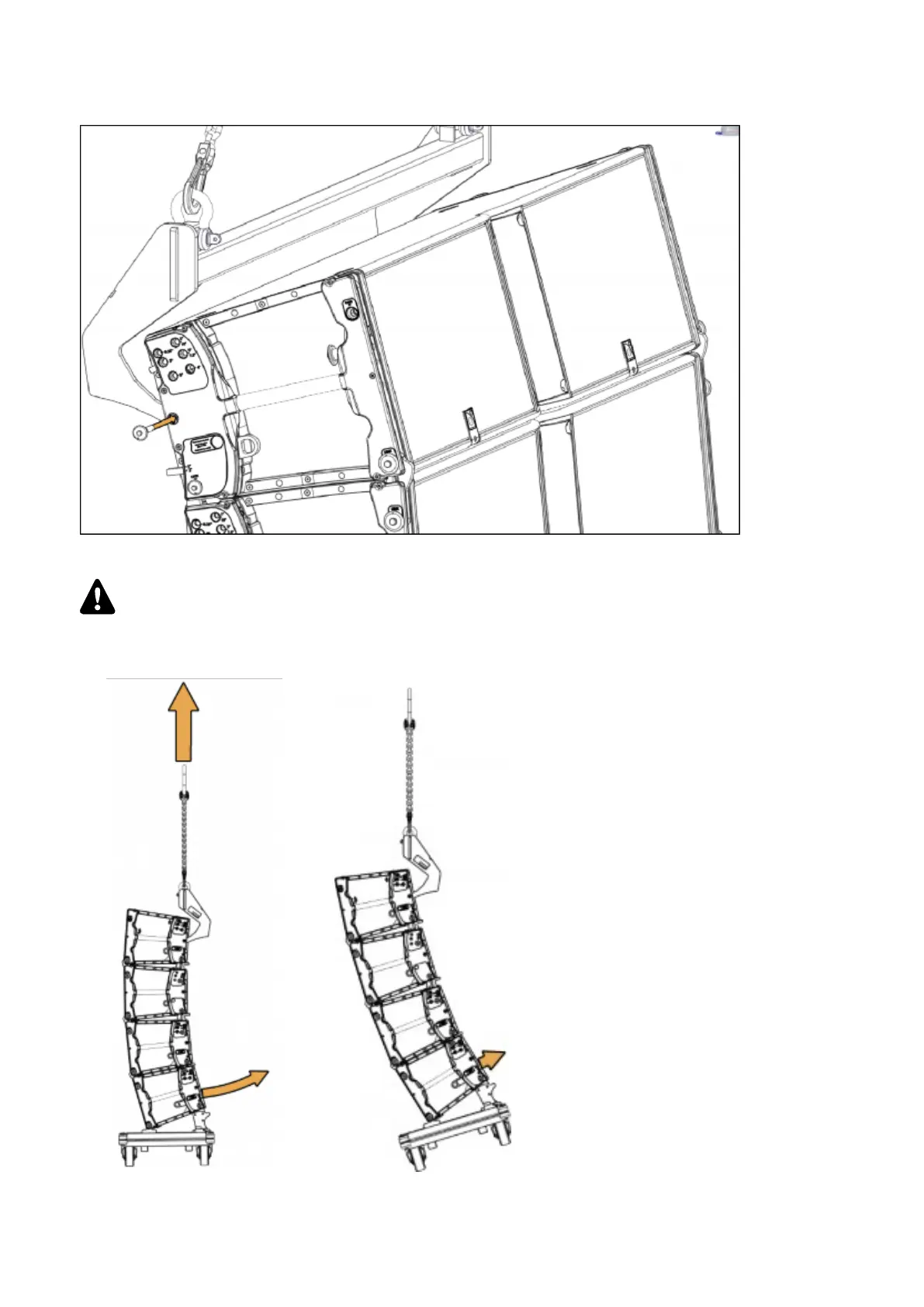

3. Position and attach the K2 enclosures under K2-RIGBAR.
Use the rear rigging middle hole.
4. Raise the array to lock the inter-enclosure angles.
Do not stand behind the array
The array swings backwards when it is raised.
98 K2 owner's manual (EN) version 1.1
