L-Acoustics KARA MODULAR WST SYSTEM User Manual

KARA
KARAKARA
KARA
®
®®
®
M
MM
MO
OO
ODULAR
DULARDULAR
DULAR WST
WST WST
WST
®
®®
®
SYSTEM
SYSTEM SYSTEM
SYSTEM
rigging procedures using
rigging procedures using rigging procedures using
rigging procedures using kara
karakara
kara-
--
-minibu
minibuminibu
minibu
VERSION 1.0
KARA_SRM_EN_1-0
w w w . l - a c o u s t i c s . c o m
56
5656
56
12. Close the four KARA#1 arms as follows (repeat on both sides of the enclosure):
a. Remove the front top R-BLP from its link hole, slide the front arm up, rotate it down, and lock it in place by
re-inserting the R-BLP into its storage hole. Note: The front top link and storage holes are the same.
b. Remove the rear top R-BLP from its angle hole, slide the angle arm so as to align the cursor with the storage
label, and lock it in place by re-inserting the R-BLP into its storage hole.

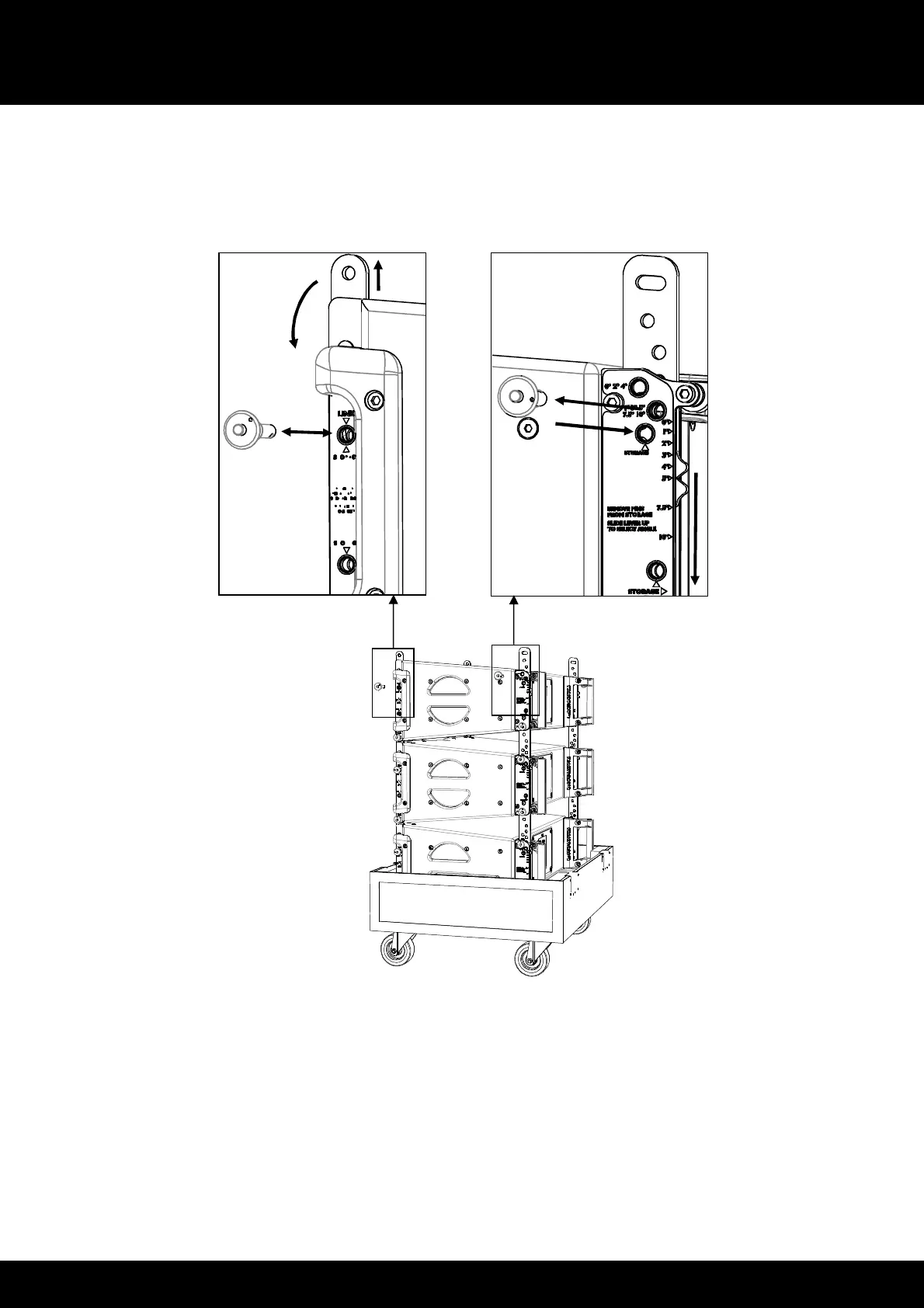

Figure 63: Closing the KARA#1 arms
a.
L
b.
L

L-Acoustics KARA MODULAR WST SYSTEM Specifications

General

Brand	L-Acoustics
Model	KARA MODULAR WST SYSTEM
Category	Enclosure
Language	English
