Product Service 1-800-522-7658

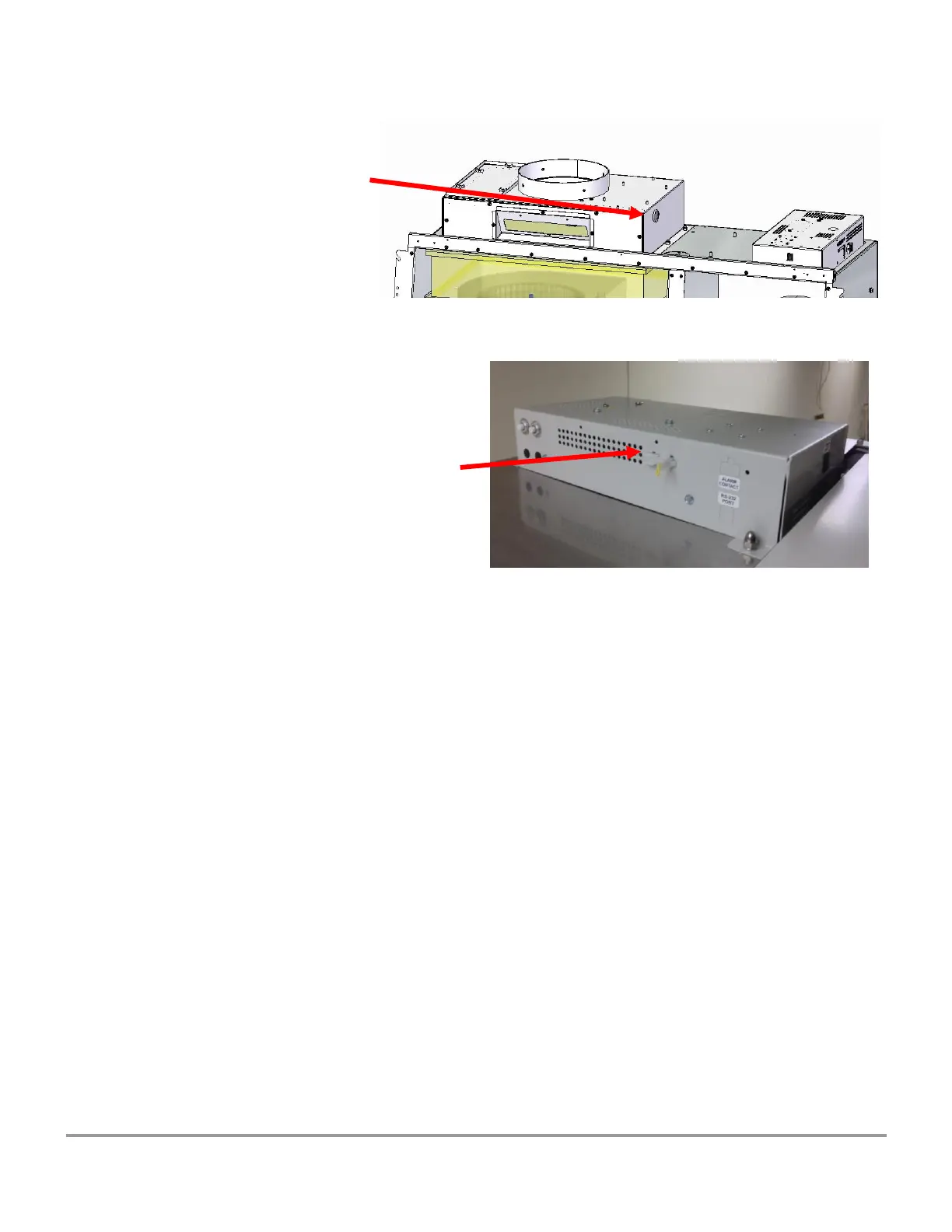

5. For the Axiom, route
the sensor cable from
the sensor, through
the grommet, and
outside of the exhaust
duct. Reinstall the
grommet. Ensure the
cable does not hinder
the operation of the
front relief valve.
6. Note the orientation of the sensor
harness plug and the sensor; it is a
keyed connection-and can only be
connected in the correct orientation.
Plug the sensor harness into the
sensor, and the other end into the
multi pin connector on the
electronics module.
7. Reconnect the cabinet to electrical service. The unit is now ready for the
calibration of the air flow sensor.
