48 Controls and Indicators
Figure 3-6

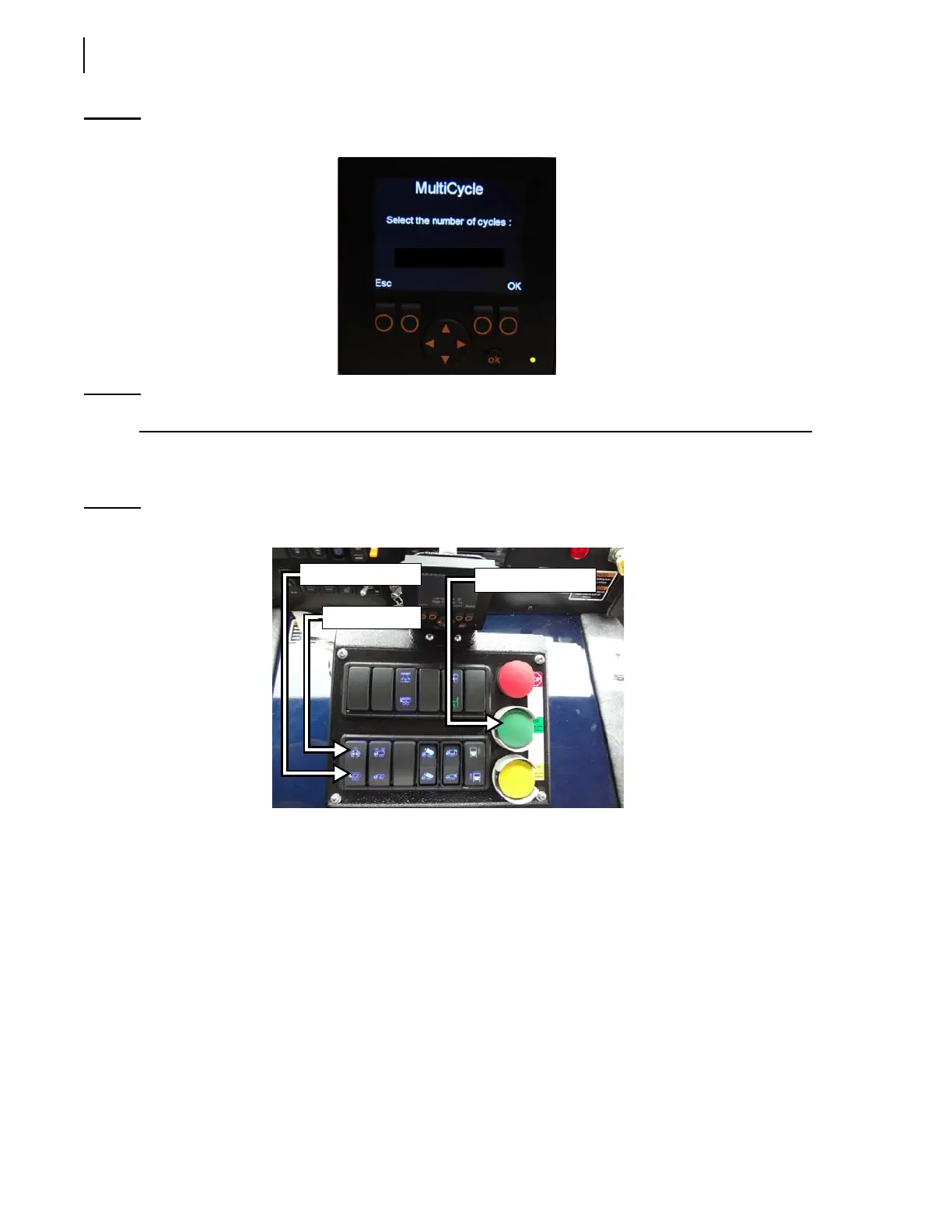

Multicycle page
NOTE: The packer multicycle function has been preset at the factory to carry out three cycles.
When the
MULTICYCLE switch on the control panel is on and the packer is activated, the packer will
move according to the default number of cycles (that is 3) or to the number of cycles you chose.
Figure 3-7
Control panel
To test the new settings of the packer:
1. On the control panel press the MULTICYCLE switch and the green START CYCLE button.
2. Once the packer has completed its cycles and come to a stop, switch off the hydraulic pump and
turn OFF the engine.
The number of cycles needs to be adjusted depending on the type of collection route used by the
vehicle. For example, in a residential area, if the houses are numerous and close to one another, it may
be required to select the higher number of cycles. This will allow the hopper to be clear for the next
house pickup.
Each time the packer completes a full cycle, the proximity/limit switch located on the right-hand side,
behind the packer, sends a signal to the electronic controller. The controller then counts the amount
of cycles that the packer does, and will stop the packer after the preset amount of cycles has been
reached.
2 3
Multicycle switch
Start cycle button
Pump switch
